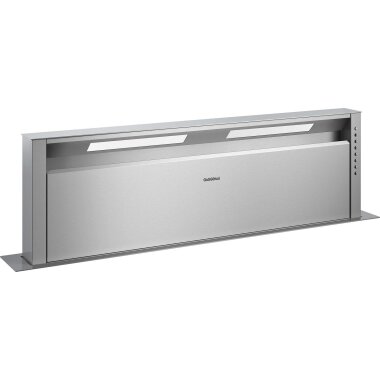

Gaggenau al400121, 400 series, table fan, 120 cm, stainless steel
- extendable table ventilation, can be completely retracted into the worktop when not in use
- Can be perfectly combined with other Vario appliances of the 400 series
- Dimmable, neutral white surface LED light for optimum illumination of the cooking zone
- Precisely processed 3 mm thick stainless steel
- Optional surface-mounted installation with visible edge or discreetly integrated flush with the surface
- extendable table ventilation, can be completely retracted into the worktop when not in use
- Can be perfectly combined with other Vario units of the 400 series
- Dimmable, neutral white surface LED light for optimum illumination of the cooking zone
- Precisely processed 3 mm thick stainless steel
- Optional surface-mounted installation with visible edge or discreetly integrated flush with the surface
- Motorless, can be combined with Gaggenau BLDC blower modules
- Performance values depend on the blower module.
- 3 electronically controlled power levels and 1 intensive level.
- Interval ventilation, 6 min.
- Run-on function, 6 min.
- Grease filter saturation indicator.
- Cassette grease filter, Dishwasher safe.
- Neutral white surface LED light (3600 k), infinitely dimmable.
- Lamp power 4 x 5 W.
- Illuminance 191 lx.
- Interchangeable covers for closing the air outlets.
- No connection spigot included.
- Values refer to configuration with ar 400 142 blower module.
- Energy efficiency class a on a scale of efficiency classes from a+++ to D.
- Average energy consumption 42.6 kWh/year.
- Fan efficiency class a.
- Lighting efficiency class E.
- Grease filter efficiency class C.
- Noise min. 44 dB / max. 59 dB normal level.
- You will find the appropriate Fan modules for recirculation or exhaust air operation in the table on page XX.
- Fasten the control unit to the side wall of the built-in unit, not to the floor of the built-in unit or the kitchen floor.
- Connection of the respective units via a network cable.
- For operation with 4 units of the Vario 200 series, 3 units of the Vario 400 series or a Hob configuration up to 120 cm wide.
- Operation of Vario cooking appliances only possible without appliance Cover.
- Max. Power of cooktops 18 kW.
- Installation is suitable in countertops made of stone, synthetic material or solid wood. Heat resistance and waterproof sealing of cut edges must be considered. For other materials, consult the countertop manufacturer for use.
- The remaining web in the worktop (min. 50 mm) between the cutouts must be reinforced with a joist. For this purpose, the furniture brace aa 409 401/431 is recommended.
- Ovens that comply with the permissible furniture temperature for Household appliances can be combined with ventilation if the installation situation permits.
- When roasting and grilling, observe the notes on smoke prevention in the instructions for the vr/vp!
- When installing ventilation with exhaust air operation and a chimney-bound fireplace, the power supply to the ventilation units must be provided with a suitable safety circuit.
- Total connected load 65 W.
- connection cable 1.7 m with plug.
- Network cable 1.2 m.
Energy efficiency class: | A |
Product type: | extractor hood |
Installation type: | Integrable |
Device width: | 120cm |
Controls: | Illuminated buttonsShort-stroke keysSSD-??????? |
Shipping weight: | 47,00 kg |
Item weight: | 41,00 kg |
Dimensions ( Length × Width ): | 14,00 × 118,40 cm |
Carl-Wery-Straße 34
Bayern
München, Deutschland, 81739
www.bsh-group.com
https://www.bsh-group.com
- Product series400 series
- Color devicestainless steel
- Basic color of the productgrey
- Housing color: Stainless steel
- Specify case material: Stainless steel
- Construction type: Downdraft/Table fan
- Control: Electronic
- Designbuilt-in
- type of installationbuilt-in
- Operating elements: Short travel keys, illuminated keys
- Decorative: Not applicable
- Fan position: External motor
- airflow type: Convertible
- connected load: 65 W
- fuse protection: 10
- Voltage: 230 V
- Frequency60; 50 TPU00040
- approval certificates: australia Standards, ce, EaC-Eurasian, G-Mark, VDE
- Length of connection cable170 cm
- Plug typegB plug with right flat, Schuko/Gardy plug with grounding, Swiss plug with grounding
- Height of the product; without chimney54 cm
- Unit width: 118,4 cm
- Device depth14 cm
- Packed unit height38 cm
- Width of packed unit64 cm
- Depth packed product130 cm
- Minimum niche width114 cm
- Maximum niche width114 cm
- Niche depth12,2 cm
- Net weight: 40,5 kg
- Gross weight: 47,0 kg
- Height chimney exhaust max.: 87 cm
- Height chimney exhaust air min.54 cm
- Height chimney recirculation max.54 cm
- Height chimney recirculation min.54 cm
- application of the EU energy consumption directiveyes
- Average annual energy consumption: 42.6 kWh/year
- Liquid dynamic efficiency (2010/30/EU): 37.5
- Lighting efficiency (2010/30/EC)9.6 lux/watt
- Grease filter efficiency (2010/30/EU): 79.1 %
- Max. Air volume: 620 m³/h
- Minimum air flow: 360.0 m³/h
- Air flow amplified (2010/30/EU): 820.0 m³/h
- Loudness at max. speed (2010/30/EC)59 dB
- Volume at min. speed (2010/30/EC)44 dB
- Volume amplified (2010/30/EC)66 dB
- Power consumption in standby mode (2010/30/EC): 0.46 W
- Sound power dB: 59 dB(a) re 1 pW
- Energy intelligent device, can optimize consumption behavior (2017/1369/EU)no
- Wireless communication possibleno
- Network broadband technology: Not applicable
- SIM card slot availableno
- Remote upgrade capabilityno
- Possibility of remote update for maintenanceno
- Possibility of voice controlno
- Manual controls: short-stroke keys
- automatic controls: Without
- Remote controlno
- Max. Fan capacity - exhaust mode: 620 m³/h
- Max. Fan power - recirculation: 580 m³/h
- Total power lamps: 20 W
- Total light intensity: 191 lux
- Grease filter material: stainless steel washable
- Backwater flap: No
- Odor filterno
- type of lights usedlED
- PaLLET_HEIGHT_PaLLET: 0.0
