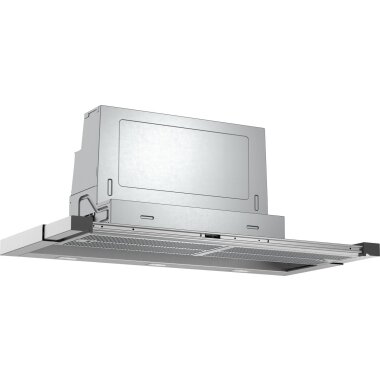

Gaggenau af210192, 200 series, flat screen hood, 90 cm, stainless steel
SKU: AF210192 | GTIN: 4242006294588
  • Zurückhaltendes Design der Flachschirmhaube durch integrierte Glasscheibe im Schwadenschirm
  • Besonders leiser Betrieb durch integrierte Geräuschdämmung
  • Selbständiges Ausfahren des Schwadenschirms durch Antippen der Griffleiste
  • Besonders hohe Luftleistung
  • Energiesparendes und geräuscharmes Gebläse
from 1.556,00 €

Only 1.524,88 € by payment in advance
less 2% discount

incl. 19% VAT , Free shipping

Delivery time: 8 - 10 Workdays

Extra-Plus an Service

Nothing found?

You could not find your desired device yet or you need a device of the manufacturers shown above? Then please tell us the desired item numbers and we will send you a non-binding offer.

Submit device request now

  • Unobtrusive design of the flat screen hood due to integrated glass pane in the steam screen
  • Particularly quiet operation due to integrated noise insulation
  • Automatic extension of the steam screen by tapping the handle bar
  • Particularly high air performance
  • Energy-saving and low-noise fan
further details
  • Unobtrusive design of the flat screen hood due to integrated glass pane in the steam screen
  • Particularly quiet operation due to integrated noise insulation
  • Automatic extension of the vapor shield by tapping the handle bar
  • Particularly high air performance
  • Energy-saving and low-noise fan
  • Function for automatic sensor-controlled power adjustment according to cooking vapor development
  • Dimmable, neutral white LED light for optimum illumination of the cooking zone
  • The patented lowering frame allows the flat screen hood to disappear completely into the wall unit
  • exhaust or recirculation mode
  • Recirculation module with activated carbon filter: quiet and highly efficient recirculation solution with odor reduction as in exhaust air mode and long replacement intervals
  • Performance and noise, level 3/intensive:
  • Air performance according to en 61591.
  • Sound power level according to en 60704-3.
  • Odor reduction with recirculation according to en 61591.
  • exhaust air:
  • 517 / 965 m³/h.
  • 57 / 71 dB (a) re 1 pW.
  • Recirculation:
  • 506 / 876 m³/h.
  • 62 / 69 dB (a) re 1 pW.
  • Odor reduction with recirculation 91%.
  • Operation from the front.
  • 3 electronically controlled power levels and 1 intensive level.
  • automatic function with sensor controlled overrun.
  • Grease filter saturation indicator.
  • Stainless steel grease filter, dishwasher safe.
  • Neutral white LED light (3500 k), infinitely dimmable.
  • Lamp power 3 x LM3-01_LED_1,5W.
  • Illuminance 355 lx.
  • Light separately switchable.
  • Blower technology with high efficiency brushless DC motor (BLDC).
  • Integrated noise insulation for quiet operation.
  • The blower is activated when the steam screen is extended.
  • Patented technology for automatic extension of the windrowing shield.
  • extendable steam screen 198 mm.
  • Flow-optimized interior for efficient airflow and easy cleaning.
  • Patented quick-fix system for easy installation.
  • A backflow flap is included in the scope of delivery.
Consumption data
  • Energy efficiency class a on a scale of efficiency classes from a+++ to D.
  • Average energy consumption 41.4 kWh/year.
  • Fan efficiency class a.
  • Lighting efficiency class a.
  • Grease filter efficiency class B.
  • Noise min. 42 dB / max. 57 dB normal level.
Planning information
  • For recirculation operation, an external recirculation module is required.
  • Patented recirculation module with activated charcoal filter can be mounted in the wall unit. The activated charcoal filter can be changed from the front by simply pulling out the activated charcoal filter.
  • To change the activated charcoal filter, the door of the wall unit must be able to be opened completely.
  • Installation in wall unit without base.
  • The required cabinet depth of the wall unit in combination with the lowering frame is 335 mm.
  • The required cabinet height of the wall unit in combination with the lowering frame is 600 mm.
  • distance above gas appliances min. 65 cm (above 12 kW total gas output min. 70 cm).
  • distance above electrical appliances min. 43 cm.
  • When installing a ventilation system with exhaust air operation and a chimney-bound fireplace, the power supply to the ventilation units must be provided with a suitable safety circuit.
connection data
  • Total connected load 266 W.
  • connection cable 1.8 m, pluggable.

Energy efficiency class: A
Colour: Stainless steel
Product type: Extractor bonnet
Installation type: Built-in Integrable
device width: 90 cm
controls: Short-stroke keys SSD-??????? Illuminated buttons
Shipping weight: 17,00 kg
Item weight: 15,00 kg
Dimensions ( Length × Width ): 32,00 × 89,80 cm
  • Product series: 200 series
  • Color device: stainless steel
  • Basic color of the productgrey
  • Housing color: Stainless steel
  • Specify case material: Stainless steel
  • Construction type: Flat screen hood
  • Control: Electronic
  • Design: Built-in
  • type of installationbuilt-in
  • Operating elements: Short travel keys, illuminated keys
  • Decorative: Not applicable
  • Fan position: Motor in housing
  • type of air duct: Convertible
  • connected load: 266 W
  • fuse protection: 10
  • Voltage: 220-240 V
  • Frequency: 50; 60 TPU00040
  • approval certificates: , australia Standards, ce, EaC-Eurasian, G-Mark, VDE
  • Connection cable length175 cm
  • Plug typegB plug with right flat, Schuko/Gardy plug with grounding, Switzerland plug with grounding
  • Width of the device89,8 cm
  • Device depth32 cm
  • Height packed device42 cm
  • Width of packed unit94 cm
  • Depth packed product49 cm
  • Minimum niche width52,4 cm
  • Maximum niche width52,4 cm
  • Niche depth29 cm
  • Net weight: 15,6 kg
  • Gross weight: 17,9 kg
  • Height chimney exhaust max.: 37,8 cm
  • Height chimney exhaust air min.: 37,8 cm
  • Height chimney recirculation max.37,8 cm
  • Height chimney recirculation min.37,8 cm
  • application of the EU energy consumption directiveyes
  • Average annual energy consumption: 41.4 kWh/year
  • Liquid dynamic efficiency (2010/30/EU): 33.8
  • Lighting efficiency (2010/30/EC)55.5 lux/watt
  • Grease filter efficiency (2010/30/EU): 89.5 %
  • Max. Air volume: 516 m³/h
  • Minimum air flow: 271.5 m³/h
  • Air flow amplified (2010/30/EU): 964.5 m³/h
  • Loudness at max. speed (2010/30/EC)57 dB
  • Loudness at min. speed (2010/30/EC)42 dB
  • Volume amplified (2010/30/EC)71 dB
  • Power consumption in standby mode (2010/30/EC): 0.39 W
  • Sound power dB: 57 dB(a) re 1 pW
  • Noise level with fast cooking position (booster)71 dB(a) re 1 pW
  • Energy smart appliance, can optimize consumption behavior (2017/1369/EU): No
  • Wireless communication possible: No
  • Network broadband technology: Not applicable
  • SIM card slot availableno
  • Remote upgrade capabilityno
  • Possibility of remote update for maintenanceno
  • Possibility of voice controlno
  • Manual controls: short-stroke keys
  • automatic controls: Air quality sensor
  • Remote controlno
  • Total blower power: 260 W
  • Max. Fan power - exhaust mode: 516 m³/h
  • Mixing bowl diameter: 965 m³/h
  • Max. Blower capacity - recirculation mode: 500 m³/h
  • Height of the mixing bowl: 649 m³/h
  • Total light intensity: 355 lux
  • Grease filter material: stainless steel washable
  • Diameter exhaust port12 cm
  • Backflow flapyes
  • Odor filterno
  • type of lights used: LED
