Bosch dfr067a52, series 4, flat screen hood, 60 cm, silver metallic
Design
- 60 cm
- For installation in a 60 cm wide special wall unit
- optionally exhaust or recirculation operation
- Short-stroke buttons (3 power levels and
- 1 intensive level) with LED display
- Electronic control on the side
- Intensive levels with automatic reset
- Fan run-on 10 minutes
- Uniform, bright illumination with 2 x 1.5 w LED module
- Color temperature: 3500 K
- Illuminance: 294 lux
- Stainless steel filter cover, perforated and dishwasher safe
- Metal grease filter, dishwasher safe
- Fan capacity for exhaust air operation according to en 61591:
- max. normal stage399 m³/h, intensive stage 728 m³/h

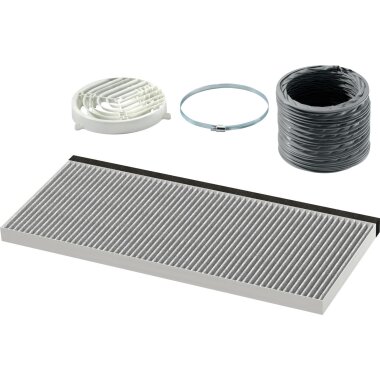

- For recirculation operation a standard recirculation set or a Clean air Plus recirculation set (optional accessory) is required
- Noise min./max. normal stage: 41/53 dB
- Noise values according to en 60704-2-13 for exhaust air operation:
- Max. Normal stage:53dB(a) re 1 pw
- Intensive stage:68 dB(a) re 1 pw
- When using the separately available Clean air Plus recirculation set (optional accessory), your unit achieves the following values in recirculation mode:
- Recirculation stage: Max. Normal operation:358m³/h
- Intensive stage:628m³/h
- Noise values recirculation: Max. Normal mode:60dB(a) re 1 pw
- Intensive stage:71 dB(a) re 1 pw
- 2 single-flow standing. EcoSilence Drive
- EcoSilence Drive
- Quick mounting bracket
- Unit dimensions (HxWxD): 426 x 598 x 290 mm
- Installation dimensions (HxWxD): 385 x 524 x 290 mm
- exhaust air connection ø 150 mm (ø 120 mm enclosed)
- with backflow flap
- Length of connection cable: 1.75 m with plug
- Handle available as optional accessory
- Energy efficiency class: a (on an energy efficiency class scale from a+++ to D)
- Average energy consumption: 37.9 kwh/year*
- Fan efficiency class: B*
- Lighting efficiency class: a*
- Grease filter efficiency class: B*
- Total connected load: 144 w
| Energy efficiency class: | A |
| Colour: | Silver metallic |
| Product type: | Extractor bonnet |
| Installation type: | Integrable Built-in |
| device width: | 60 cm |
| controls: | SSD-???????#1 LED Short-stroke keys SSD-??????? |
| Shipping weight: | 11,00 kg |
| Item weight: | 10,00 kg |
| Dimensions ( Length × Width ): | 29,00 × 59,80 cm |
- Product seriesseries 4
- Color appliance: Silver metallic
- Base color of the product: Not applicable
- Housing color: Silver metallic
- Specify housing material: Galvanized
- Type of construction: flat screen hood
- Control: electronic
- Design: Built-in
- type of installationbuilt-in
- Operating elements: Short travel keys, LED
- Decorative: Not applicable
- Fan position: Motor in housing
- type of air duct: Convertible
- connected load: 144 w
- fuse protection: 10
- Voltage: 220-240 V
- Frequency: 50; 60 TPU00040
- Length connection cable175 cm
- Plug type: Schuko/Gardy.w.grounding
- Width of the device59,8 cm
- Device depth29 cm
- Packed unit height40 cm
- Width packed unit64 cm
- Depth packed product49 cm
- Minimum niche width52,4 cm
- Maximum niche width52,4 cm
- Niche depth29 cm
- Net weight: 9,9 kg
- Gross weight: 11,8 kg
- Height chimney exhaust max.: 42,6 cm
- Height chimney exhaust air min.: 42,6 cm
- Height chimney recirculation max.42,6 cm
- Height chimney recirculation min.42,6 cm
- Average annual energy consumption: 37.9 kwh/year
- Liquid dynamic efficiency (2010/30/EU): 27.8
- Lighting efficiency (2010/30/EC)70.0 lux/watt
- Grease filter efficiency (2010/30/EU): 88.5 %
- Max. Air volume: 399 m³/h
- Minimum air flow: 211 m³/h
- Air flow amplified (2010/30/EU): 728 m³/h
- Loudness at max. speed (2010/30/EC)53 dB
- Loudness at min. speed (2010/30/EC)41 dB
- Volume amplified (2010/30/EC)68 dB
- Energy consumption in standby mode (2010/30/EC): 0.20 w
- Sound power dB: 53 dB(a) re 1 pw
- Noise level with fast cooking position (booster)68 dB(a) re 1 pw
- Energy smart appliance, can optimize consumption behavior (2017/1369/EU): No
- Wireless communication possible: No
- Network broadband technology: Not applicable
- SIM card slot available: No
- type of control interfaceno
- Remote upgrade possibilityno
- Possibility of remote update for maintenance: No
- Possibility of voice controlno
- Manual controls: Short-stroke keys
- Remote Controlno
- Total fan power: 140 w
- Max. Fan capacity - exhaust mode399 m³/h
- Max. fan power at intensive stage - exhaust air mode: 728 m³/h
- Max. Fan capacity - recirculation mode: 358 m³/h
- Max. fan power at intensive stage - recirculation mode: 628 m³/h
- Lighting efficiency (2010/30/EC): on/off
- Total luminous intensity: 294 lux
- Grease filter material: stainless steel washable
- Diameter exhaust port: 12 cm
- type of grease filtercassette
- Backflow flapyes
- Odor filterno
- type of lights used: LED
- COMBINED_NOMenCLaTURE_CODE: 84146000
