neff d46ed22x1, n 50, flat screen hood, 60 cm, silver metallic
SKU: D46ED22X1 | GTIN: 4242004251118
Flat screen hood: the flat screen hood makes itself practically invisible in the wall unit and is ideal for clear kitchen fronts
  • Handle bar - select the accessory in your desired color
  • EfficientDrive motor technology - quiet and energy-efficient hood motor for more quietness in the kitchen.
  • Intensive stage: increases fan power for heavy cooking fumes
  • LED light - everything lights up while cooking.
A A+++ D
296,00 €
from
Product datasheet

Only 290,08 € by payment in advance
less 2% discount

incl. 19% VAT , Free shipping  (Spedition)

Delivery time: 8 - 10 Workdays

Garantieverlängerung


Nothing found?

You could not find your desired device yet or you need a device of the manufacturers shown above? Then please tell us the desired item numbers and we will send you a non-binding offer.

Submit device request now

Design
  • 60 cm
  • Can be installed in 60 cm wide wall unit
  • optionally exhaust or recirculation mode

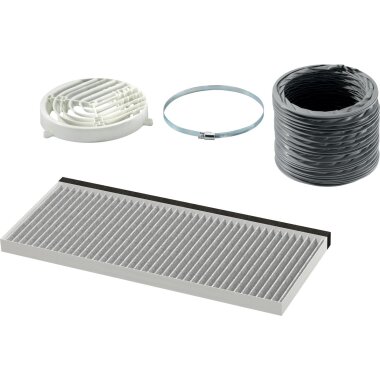

  • For recirculation operation, a standard recirculation set (optional accessory) is required
DesignComfort
  • Short-stroke buttons with LED display
  • High, finely adjustable air output through electronic control via short-stroke keys with LED display
  • High, finely dosed air performance through electronic control
  • Short-stroke keys (3 power levels and
  • 1 intensive stage) with LED display
  • Electronic control on the side
  • Short-stroke keys
  • 3 power levels and
  • 1 intensive level
  • Intensive levels with automatic reset
  • automatic fan run-on with digital display
equipment
  • Uniform, bright illumination with 2 x 1.5 w LED module
  • Color temperature: 3500 K
  • Illuminance: 294 lux
  • Cassette with aluminum frame
  • Metal grease filter, dishwasher safe
Operating mode and power
  • Fan capacity for exhaust air operation according to en 61591:
  • max. normal stage268 m³/h, intensive stage 400 m³/h
  • Noise values according to en 60704-2-13 for exhaust air operation:
  • Max. normal level:62dB(a) re 1 pw
  • Intensive stage:69 dB(a) re 1 pw
  • Noise min./max. normal stage: 49/62 dB
  • 1 single-flow horizontal. bldc motor
  • bldc motor
Planning and installation information
  • Unit dimensions (HxWxD): 203 x 598 x 290 mm
  • Installation dimensions (HxWxD): 162 x 526 x 290 mm
  • exhaust air connection ø 150 mm (ø 120 mm enclosed)
  • with backflow flap
  • Length of connection cable: 1.75 m with plug
  • without handle (available as optional accessory)
Environment and safety
  • Energy efficiency class: a (on an energy efficiency class scale from a+++ to D)
  • Average energy consumption: 21 kwh/year*
  • Fan efficiency class: B*
  • Lighting efficiency class: a*
  • Grease filter efficiency class: C*
  • Total connected load: 74 w


Energy efficiency class: A
Colour: Silver metallic
Product type: Extractor bonnet
Installation type: Integrable Built-in
device width: 60 cm
controls: LED Short-stroke keys SSD-??????? SSD-???????
Shipping weight: 9,00 kg
Item weight: 7,00 kg
Dimensions ( Length × Width ): 29,00 × 59,80 cm
  • Product series: n 50
  • Color appliance: Silver metallic
  • Basic color of the product: not applicable
  • Housing color: Silver metallic
  • Specify material of housing: galvanized
  • Type of construction: flat screen hood
  • Control: electronic
  • Design: Built-in
  • type of installationbuilt-in
  • Operating elements: Short travel keys, LED
  • Decorative: not applicable
  • Fan position: motor in housing
  • type of air duct: Convertible
  • connected load: 74 w
  • fuse protection: 10
  • Voltage: 220-240 V
  • Frequency: 50; 60 TPU00040
  • Length connection cable175 cm
  • Plug type: Schuko/Gardy.w.grounding
  • Width of the device59,8 cm
  • Device depth29 cm
  • Packed unit height31 cm
  • Width packed unit64 cm
  • Depth packed product36 cm
  • minimum niche width52,6 cm
  • maximum niche width52,6 cm
  • niche depth29 cm
  • net weight: 7,9 kg
  • Gross weight: 9,3 kg
  • Height chimney exhaust max.: 20,3 cm
  • Height chimney exhaust air min.: 20,3 cm
  • Height chimney recirculation max.20,3 cm
  • Height chimney recirculation min.20,3 cm
  • Average annual energy consumption: 21.0 kwh/year
  • Liquid dynamic efficiency (2010/30/EU): 24.6
  • Lighting efficiency (2010/30/EC)71.7 lux/watt
  • Grease filter efficiency (2010/30/EU): 79.6 %
  • Max. Air volume: 268 m³/h
  • Minimum air flow: 161 m³/h
  • Air flow amplified (2010/30/EU): 400 m³/h
  • Loudness at max. speed (2010/30/EC)62 dB
  • Volume at min. speed (2010/30/EC)49 dB
  • Volume amplified (2010/30/EC)69 dB
  • Energy consumption in standby mode (2010/30/EC): 0.20 w
  • Sound power dB: 62 dB(a) re 1 pw
  • Noise level with fast cooking position (booster): 69 dB(a) re 1 pw
  • Energy intelligent device, can optimize consumption behavior (2017/1369/EU): no
  • Wireless communication possible: no
  • network broadband technology: not applicable
  • SIM card slot available: no
  • type of interface for control: no
  • Possibility of remote upgrade: no
  • Possibility of remote update for maintenance: no
  • Possibility of voice controlno
  • Manual controls: short stroke keys
  • Remote controlno
  • Total fan power: 70 w
  • Max. Fan capacity - exhaust air mode268 m³/h
  • Max. fan power at intensive stage - exhaust air mode400 m³/h
  • Max. Fan capacity - recirculation mode263 m³/h
  • Max. fan power at intensive stage - recirculation mode: 353 m³/h
  • Lighting efficiency (2010/30/EC): on/off
  • Total luminous intensity: 294 lux
  • Grease filter material: aluminum washable
  • Diameter exhaust port: 12 cm
  • type of grease filtercassette
  • Backflow flapyes
  • Odor filter: no
  • type of lights used: LED
  • COMBInED_nOMenCLaTURE_CODE: 84146000
