Neff

neff d51naa1c0, n 30, fan module, 53 cm, anthracite

  • SKU: D51NAA1C0
  • GTIN: 4242004234425
Fan module: The fan module can be discreetly mounted in the kitchen cabinet or masonry fireplace for more room versatility
  • LED light - everything lights up while cooking.
  • Fan power - provides fresh air while cooking.
Neff

neff d51naa1c0, n 30, fan module, 53 cm, anthracite

Product datasheet (opens in new tab)
from
231,00 €

Only 226,38 € by payment in advance
less 2% discount

incl. 19% VAT , Free shipping

  • Delivery time: 8 - 10 Workdays (DE - int. shipments may differ)
Unit od ac

Sicher bezahlen

Nothing found?

You could not find your desired device yet or you need a device of the manufacturers shown above? Then please tell us the desired item numbers and we will send you a non-binding offer.

Submit device request now

Description

  • Energy efficiency class: d (on an energy efficiency class scale from a+++ to d)
  • average energy consumption: 67.7 kWh/year*
  • Fan efficiency class: E*
  • Lighting efficiency class: d*
  • Grease filter efficiency class: d*
  • Noise min./max. normal level: 46/62 dB
  • Choice of exhaust or recirculation mode

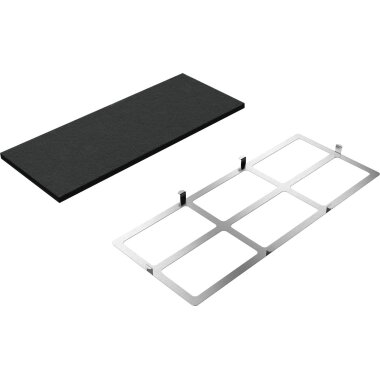

  • For recirculation operation, a standard recirculation set (optional accessory) is required
  • For installation in a kitchen cabinet
  • 1 motor
  • fume hoods for 3 power levels
  • 3 power levels
  • Metal grease filter, dishwasher safe
  • Workplace lighting with 2 x LEd 3w E14
  • Illuminance: 78 lux
  • Color temperature: 2700 K
  • Exhaust air capacity according to en 61591:
  • max.302 m³/h
  • Noise values according to en 60704-3 and en 60704-2-13 max. normal level exhaust air operation: 62 dB(A) re 1 pW (48 dB(A) re 20 ?Pa sound pressure)
  • Max. Flow rate: 302 m3/h
  • Unit dimensions (HxWxD): 208 x 534 x 300 mm
  • Installation dimensions: width: 49 cm, depth: 26 cm
  • Exhaust air connection ø 120 mm
  • Length of connection cable: 1.5 m with plug
  • Total connected load: 121 W
  • with backflow flap
Energy efficiency class: D
Color: anthraciteGray
Product type: extractor hood
Installation type: Built in
Device width: 50cm
Controls: Mechanischer SchiebereglerWithoutSlide switchOhne;Schiebeschalter
Shipping weight: 7,00 kg
Item weight: 4,00 kg
Dimensions ( Length × Width × Height ): 30,00 × 53,40 × 20,80 cm

Technical data

  • Product series: n 30
  • Color deviceanthracite
  • Basic color of the product: not applicable
  • Housing color: Anthracite
  • Specify material of housing: lacquered
  • Type of construction: fan module/intermediate/undermount hood
  • Control: Mechanical
  • Design: Built-in
  • Type of installationbuilt-in
  • Controls: Without, slide switch
  • decoratable: Not applicable
  • Fan position: motor in housing
  • Type of air duct: Convertible
  • Connected load: 121 W
  • Fuse protectionkSA
  • Voltage: 220-240 V
  • Frequency50 TPU00040
  • Length connection cable150 cm
  • Plug type : Schuko/Gardy.w.grounding
  • Device width: 53,4 cm
  • Device depth30 cm
  • Packed unit height27,3 cm
  • Width packed unit80,1 cm
  • Depth packed product32,2 cm
  • minimum niche width49,3 cm
  • maximum niche width49,3 cm
  • niche depth25,7 cm
  • net weight4,5 kg
  • Gross weight: 7,6 kg
  • Height chimney exhaust max.: 20,8 cm
  • Height chimney exhaust air min.: 20,8 cm
  • Height chimney recirculation max.20,8 cm
  • Height chimney recirculation min.20,8 cm
  • average annual energy consumption: 67.7 kWh/year
  • Liquid dynamic efficiency (2010/30/EU): 9.5
  • Lighting efficiency (2010/30/EC)12.1 lux/watt
  • Grease filter efficiency (2010/30/EU): 66.0 %
  • Max. Air volume: 302 m³/h
  • Minimum air flow: 130 m³/h
  • Loudness at max. speed (2010/30/EC)62 dB
  • Loudness at min. speed (2010/30/EC)46 dB
  • Energy consumption in off mode (2010/30/EU): 0.00 W
  • Sound power dB62 dB(A) re 1 pW
  • Energy intelligent device, can optimize consumption behavior (2017/1369/EU): no
  • wireless communication possible: no
  • network broadband technology: not applicable
  • SIM card slot available: no
  • Type of interface for control: no
  • Remote upgrade possibility: no
  • Possibility of remote update for maintenance: no
  • Possibility for voice controlno
  • Manual controlsslide switch
  • Remote control: no
  • Total fan power: 115 W
  • Max. Fan power - exhaust air mode: 302 m³/h
  • Max. Fan power - recirculation mode: 300 m³/h
  • Lighting efficiency (2010/30/EC): On/Off
  • Total light intensity: 78 lux
  • Grease filter material: aluminum washable
  • diameter exhaust port: 12 cm
  • Type of grease filter: cassette
  • Backflow flapyes
  • Odor filter: no
  • COMBInEd_nOMenCLATURE_COdE: 84146000
