neff d49ml54x1, n 70, flat screen hood, 90 cm, stainless steel
construction
- 90 cm
- Can be installed in 60 or 90 cm wide wall unit
- optionally exhaust air or recirculated air operation

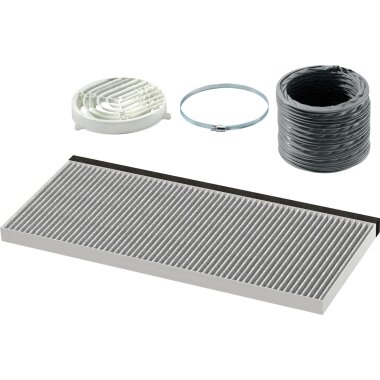

- For recirculation operation, a standard recirculation set or a Clean Air Plus recirculation set (optional accessory) is required
- Short-stroke keys with 7-segment display
- High, finely adjustable air output thanks to electronic control via short-stroke keys with 7-segment display
- High, finely meterable air output through electronic control
- Short-stroke keys (3 power levels and 2 intensive levels) with 7-segment display
- Electronic control with 6 keys and display
- Short-stroke keys
- 3 power levels and 2 intensive levels
- Intensive levels with automatic reset
- Automatic fan run-on with digital display
- Uniform, bright illumination with 3 x 1.5 w LED module
- Dimming function
- Softlight
- Color temperature: 3500 K
- illuminance: 355 lux
- Silence button
- AirFresh interval ventilation
- Stainless steel filter Cover, Dishwasher safe
- Metal grease filter, Dishwasher safe
- Saturation indicator for metal grease filter
- Fan capacity for exhaust air operation according to en 61591:
- max. normal stage395 m³/h, intensive stage 700 m³/h
- when using the separately available Clean Air Plus recirculation set (optional accessory), your appliance achieves the following values in recirculation mode:
- Recirculation stage: Max. normal operation:358m³/h
- Intensive stage:628m³/h
- Noise level recirculation: Max. normal mode:60db(A) re 1 pw
- Intensive stage:71 db(A) re 1 pw
- Noise values according to en 60704-2-13 for exhaust air operation:
- Max. normal stage:53db(A) re 1 pw
- Intensive stage:69 db(A) re 1 pw
- Noise min./max. normal stage: 41/53 db
- 2 single-flow standing. bldc motor
- bldc motor
- Quick mounting bracket
- Unit dimensions (hxwxd): 426 x 898 x 290 mm
- Installation dimensions (HxwxD): 385 x 524 x 290 mm
- Exhaust air connection ø 150 mm (ø 120 mm enclosed)
- Length of connection cable: 1.75 m with plug

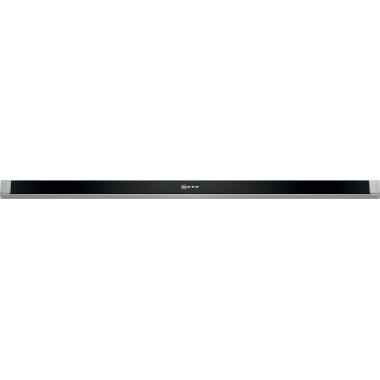

- without handle (available as optional accessory)
- Energy efficiency class: b (on an energy efficiency class scale from a+++ to D)
- Average energy consumption: 38.8 kwh/year*
- Fan efficiency class: b*
- lighting efficiency class: A*
- Grease filter efficiency class: b*
- Total connected load: 146 w
| Energy efficiency class: | B |
| Colour: | Stainless steel |
| Product type: | Extractor bonnet |
| Installation type: | Integrable Built-in |
| device width: | 90 cm |
| controls: | 7-Segment display Short-stroke keys SSD-??????? SSD-??????? |
| Shipping weight: | 15,00 kg |
| Item weight: | 12,00 kg |
| Dimensions ( Length × Width ): | 29,00 × 89,80 cm |
- Product series: n 70
- Color appliancestainless steel
- Basic color of the product: not applicable
- Housing color: stainless steel
- Specify case material: stainless steel
- type of construction: Flat screen hood
- Control: Electronic
- type of construction: Built-in
- Type of installation: Built-in
- controls: 7-segment display, short-stroke keys
- Decal capable: not applicable
- Fan position: motor in housing
- Type of airflow: Convertible
- Connected load: 146 w
- Fuse protection: 10
- Voltage: 220-240 V
- Frequency: 50; 60 TPU00040
- Length connection cable: 175 cm
- Plug type: Schuko/Gardy.w.grounding
- Device width89,8 cm
- Device depth29 cm
- Packed unit height42 cm
- width of packed unit94 cm
- Depth packed product49 cm
- minimum niche width52,4 cm
- maximum niche width52,4 cm
- niche depth29 cm
- net weight12,5 kg
- gross weight: 15,3 kg
- Height chimney exhaust air max.42,6 cm
- Height chimney exhaust air min.: 42,6 cm
- Height chimney recirculation max.42,6 cm
- Height chimney recirculation min.42,6 cm
- Average annual energy consumption: 38.8 kwh/year
- Liquid dynamic efficiency (2010/30/EU): 27.2
- lighting efficiency (2010/30/EC)59.2 lux/watt
- Grease filter efficiency (2010/30/EU): 88.7 %
- Max. Air volume: 395 m³/h
- Minimum air flow: 198 m³/h
- Air flow amplified (2010/30/EU): 700 m³/h
- Loudness at max. speed (2010/30/EC)53 db
- Loudness at min. speed (2010/30/EC)41 db
- Volume amplified (2010/30/EC)69 db
- Energy consumption in standby mode (2010/30/EC): 0.30 w
- Sound power db: 53 db(A) re 1 pw
- Noise level with fast cooking position (booster): 69 db(A) re 1 pw
- Energy intelligent appliance, can optimize consumption behavior (2017/1369/EU): no
- Wireless communication possible: no
- network broadband technology: not applicable
- SIM card slot available: no
- Type of interface for control: no
- Remote upgrade possibility: no
- Possibility of remote update for maintenance: no
- Possibility of voice controlno
- Manual controls: Short-stroke keys
- Remote controlno
- Total fan power: 140 w
- Max. Fan capacity - exhaust air mode: 395 m³/h
- Max. fan power at intensive stage - exhaust air mode: 700 m³/h
- Max. Fan power - recirculation mode: 358 m³/h
- Max. fan power at intensive stage - recirculation mode: 628 m³/h
- lighting efficiency (2010/30/EC): Stepless
- Total light intensity: 355 lux
- Grease filter material: Stainless steel washable
- Exhaust diameter: 12 cm
- Type of grease filtercassette
- Backflow flapyes
- Odor filter: no
- Number of speed settings: 3-stage + 2 intensive
- Type of lights used: LED
- COMbInED_nOMenCLATURE_CODE: 84146000
