Neff D98IPT2Y5, N 90, wall panel, 90 cm, Flex Design

  • SKU: D98IPT2Y5
  • GTIN: 4242004269083
Europe's quietest slope when installed in recirculation mode*
  • Europe's quietest slope when installed in recirculation mode.
  • Flex Design: change the style Your kitchen according to your taste. At any time.
  • Efficient Drive motor technology: quiet and energy-efficient hood motor for more peace and quiet in the kitchen.
  • Automatic air sensor - automatically adjusts the extractor strength
  • Hob-based hood control : Trigger strength and lighting as required.
Product datasheet (opens in new tab)
Neff Collection

Neff D98IPT2Y5, N 90, wall panel, 90 cm, Flex Design

Product datasheet (opens in new tab)
Beratung anfordern
Sicher bezahlen

Nothing found?

You could not find your desired device yet or you need a device of the manufacturers shown above? Then please tell us the desired item numbers and we will send you a non-binding offer.

Submit device request now

Description

Design:
  • Slanted dining design
  • Flex design: Interchangeable pilaster strips, requires additional color-specific accessories when purchasing (not included in standard delivery)
  • Wall mounting
  • Glass pane: black printed
  • Choice of exhaust air or recirculation mode
  • Chimneyless operation possible with recirculation

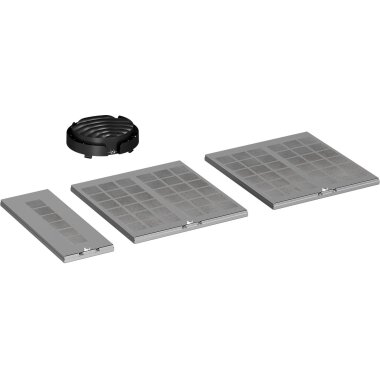

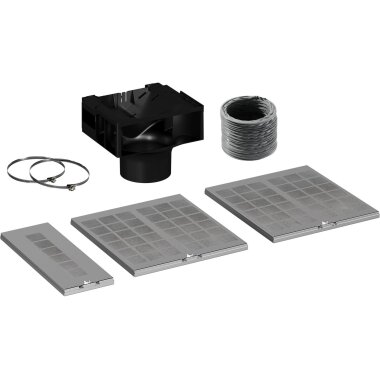

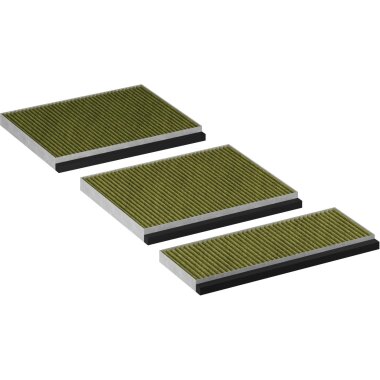

  • For recirculation mode the Clean Air Plus recirculation set (accessory) or the Longlife recirculation set (accessory) is required.
Most important features:
  • Efficient Drive motor technology - quieter and energy-efficient motor
  • Lighting: 2 pieces, LED, 3 W, with color temperature adjustable
  • Softlight: the lighting switches on and off gently.
  • Dimming Function: the brightness of the lighting can be adjusted.
  • Color temperature: 3500 K
  • Illuminance: 422 lux
  • Boost position: intermediate points of the glass filter cover to ensure particular to better extract strong cooking odors and amounts of steam.
  • Extractor hood on the front and bottom
  • 3 metal grease filters
Comfort functions:
    < li>Air quality sensor Automatic Air: Automatic sensor-based power control for best results
  • Touch Control
  • 3 power levels and 2 intensive levels
  • Automatic reset from intensive to normal level after 6 minutes .
  • Saturation display for grease and odor filters
  • Automatic run-on: 10 minutes
Digital functions:
  • Home Connect: Operate, check and adjust your hood via smartphone or tablet (only in countries where the Home Connect service is available)
  • The hob-based hood control automatically activates the extractor hood when cooking, thanks to the WiFi connection of an extractor hood and a suitable hob.
  • Fully automatic extractor hood
  • Voice control possible via common voice assistants
  • Performance profiles: Choose between standard, performance or quiet in the Home Connect app to increase the extraction power or reduce the fan noise.
  • Favorites button: yes - direct access to favorite functions via a configurable button (available with a connected Home Connect account).
  • Smart Home Trigger via the favorites button (available with a connected Home Connect account): Open the intelligent universe of your extractor hood (partner service required).
  • LED lighting with adjustable light temperature: Allows you to adjust the light temperature to suit your personal needs Needs via the Home Connect app
  • Interval function: available via the Home Connect app
  • The Home Connect functionality can be expanded as desired by integrating numerous applications from external cooperation partners (partnering)
  • < li>Upgradable device (available with connected Home Connect account): Always keep the device up to date with the latest software.
Convenience of cleaning:
    < li>Extremely large opening angle for easy access to the filters and easy cleaning.
  • The surfaces and materials are smooth and easy to clean.
  • Aerodynamically optimized inner frame, easy to clean
  • Metal grease filter, dishwasher safe
Exhaust air performance:
  • According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values ​​in exhaust air mode :
  • Performance level 1: Fan performance: 228 m3/h; Noise value: 35 dB(A) re1pW
  • Performance level 2: Fan performance: 325 m3/h; Noise value: 43 dB(A) re1pW
  • Performance level 3: Fan performance: 441 m3/h; Noise value: 51 dB(A) re1pW
  • Intensive level 1: Fan performance: 753 m3/h; Noise value: 65 dB(A) re1pW
  • Intensive level 2: Fan performance: 1007 m3/h; Noise value: 70 dB (A) re1pW
  • Energy efficiency class: A+ (on an energy efficiency class scale from A+++ to D)
  • Average energy consumption: 39.1 kWh/year*
  • Fan efficiency class: A*
  • Lighting efficiency class: A*
  • Grease filter efficiency class: C*
Recirculating air performance:
  • According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values ​​in recirculation mode with the Clean Air plus recirculation set for installation with a chimney:
  • Performance level 1: Fan performance: 211 m3/h; Noise value: 42 dB(A) re1pW
  • Performance level 2: Fan performance: 315 m3/h; Noise value: 51 dB(A) re1pW
  • Performance level 3: Fan performance: 435 m3/h; Noise value: 59 dB(A) re1pW
  • Intensive level 1: Fan performance: 752 m3/h; Noise value: 72 dB(A) re1pW
  • Intensive level 2: Fan performance: 964 m3/h; Noise value: 78 dB (A) re1pW
  • According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values ​​in recirculation mode with the Clean Air plus recirculation set for chimney-free installation:
  • Performance level 1: Fan performance: 214 m3/h; Noise value: 42 dB(A) re1pW
  • Performance level 2: Fan performance: 312 m3/h; Noise value: 51 dB(A) re1pW
  • Performance level 3: Fan performance: 437 m3/h; Noise value: 60 dB(A) re1pW
  • Intensive level 1: Fan performance: 751 m3/h; Noise value: 74 dB(A) re1pW
  • Intensive level 2: Fan performance: 944 m3/h; Noise value: 80 dB (A) re1pW
Technical data and sustainability:
  • Consumption information:
  • Total connected load: 250 W< /li>
  • Voltage: 220 - 240 V
  • Sustainability:
  • Made in Germany: manufactured in a CO2-neutral production facility
  • Environmentally friendly packaging li>
  • The most efficient fan technology on the market

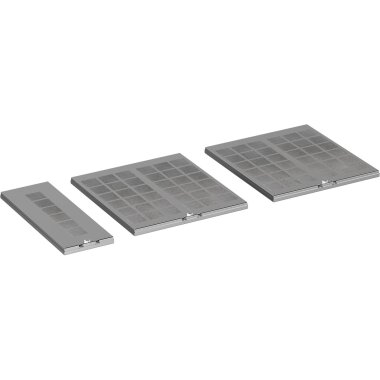

  • Available odor filter as a regenerable long life filter with a service life of 10 years
  • Air quality sensor Automatic Air: Sensor-based performance control for the best results with minimal energy consumption.< /li>
Information for planning and installation:
  • Device dimensions for exhaust air (HxWxD): 855-1098 x 890 x 447 mm
  • Device dimensions for recirculated air ( HxWxD): 892-1185 x 890 x 447 mm
  • Dimensions of recirculating air installation, chimneyless (HxWxD): 471 mm x 890 mm x 447 mm
  • Simple and weight-reduced installation thanks to the new Easy- Installation system
  • Exhaust air connection Ø 150 mm
  • Length of connection cable: 1.3 m with plug
  • Delivery with backflow flap
  • Product series: N 90
  • Color device: Black
  • Basic color of the product : Not applicable
  • Colour of housing: Black
  • Material of fireplace: Black
  • Specify the material of the housing: Glass, painted
  • Design: Wall mounting
  • Control: Electronic< /li>
  • Design: Built-in
  • Type of installation: Wall mounting
  • Controls : LED, TouchControl
  • Decorable: Not applicable
  • Location of fan: Motor in housing
  • < b>Type of air duct: Convertible
  • Connection load: 250 W
  • Fuse protection: 10
  • Voltage: 220-240 V
  • Minimum voltage: 220 V
  • Maximum voltage: 240V
  • Frequency: 50; 60
  • Minimum frequency: 50
  • Maximum frequency: 60
  • Length of connection cable: 130.0 cm
  • Plug type: Schuko/Gardy.with earthing
  • Device height: 45 cm
  • Device width: 89 cm
  • Device depth: 44.7 cm
  • Height of packed device: 77 cm
  • Width of packaged device: 73 cm
  • Depth of packaged product: 123 cm
  • Net weight: 25.2 kg
  • Gross weight: 36.5 kg
  • Air outlet: Yes
  • Height of chimney exhaust air max.: 66.3 cm
  • Height of chimney exhaust air min.: 42 cm
  • Height of chimney circulating air max.: 75 cm
  • Height of chimney circulating air min.: 45.7 cm
  • Energy efficiency class (2010/30/EU): A+
  • Avg. Annual energy consumption: 39.1 kWh/year
  • Fluid dynamics efficiency (2010/30/EU): 39.3
  • Lighting efficiency (2010/30/EC): 58.6 lux/Watt
  • Grease filter efficiency (2010/30/EU): 81.4%
  • Max. Air volume: 441 m³/h
  • Minimum air flow: 228 m³/h
  • Air flow increased (2010/30/EU)< /b>: 1007.0 m³/h
  • Volume at max. speed (2010/30/EC): 51 dB
  • Volume at min . Speed ​​(2010/30/EC): 35 dB
  • Sound power dB: 51 dB(A) re 1 pW
  • Noise level with quick cooking position (booster): 70 dB(A) re 1 pW
  • Energy-intelligent device, can optimize consumption behavior (2017/1369/EU): No
  • Wireless communication possible: Yes, built into the device
  • Network broadband technology: Not applicable
  • SIM card slot available: No
  • Type of interface for control: LAN
  • Possibility for remote upgrade : Yes
  • Ability to remotely update for maintenance: Yes
  • Ability to voice control: Yes, with optional accessories
  • Manual controls: TouchControl
  • Remote Control: No
  • Total fan power< /b>: 230W
  • Max. Fan power - exhaust mode: 441 m³/h
  • Fan power at intensive level - exhaust mode: 1007 m³/h
  • Max. Fan performance - recirculation mode: 437 m³/h
  • Fan performance at intensive level - recirculation mode: 944 m³/h
  • Lighting efficiency ( 2010/30/EC): Gradual
  • Total light intensity: 422 lux
  • Grease filter material: washable stainless steel< /li>
  • Diameter of exhaust air connection: 15 cm
  • Backflow flap: Yes
  • Odour filter : No
  • Number of speed settings: 3 levels + 2 intensive
  • COMBINED_NOMENCLATURE_CODE: 84146000
Energy efficiency class: A+
Color: Black#1
Product type: extractor hood
Installation type: Wall mounting
Device width: 90cm
Controls: LEDTouchControlLED; touch controlPer AppPer App;Touch-Steuerung
collection: NEFF Collection
Shipping weight: 33,00 kg
Item weight: 22,00 kg
Dimensions ( Length × Width × Height ): 44,70 × 89,00 × 45,00 cm
