Bosch DWK81AN60, Series 6, wall mount, 80 cm, clear glass printed black
Design:
- Slanted dining design
- Wall mounting
- Glass pane: printed black
- Choice of exhaust air or Recirculation mode
- With recirculation, chimney-free operation is possible.

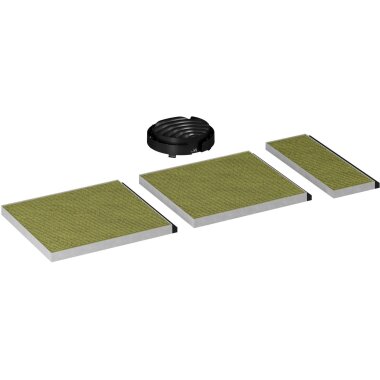

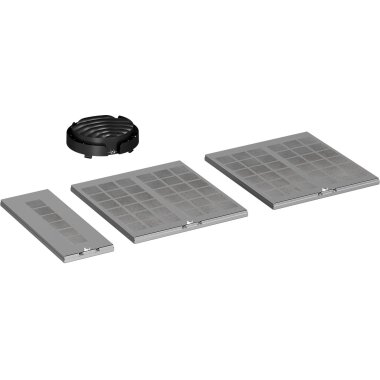

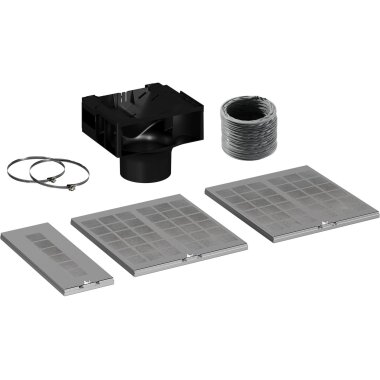

- The Clean Air Plus recirculation set (accessory) or the Longlife recirculation set (accessory) is required for recirculation operation. < /ul>Most important features:
- Eco Silence Drive - the powerful and energy-saving motor
- Lighting: 2 pieces, LED, 3 W, with color temperature adjustable li>
- SoftLight: the lighting switches on and off gently.
- Dimming function: the brightness of the lighting can be adjusted.
- Color temperature: 3500 K
- Illuminance: 422 lux
- Boost position: intermediate positions of the glass filter Cover to better extract particularly strong cooking odors and amounts of steam.
- Extractor hood on the front and bottom < li>3 metal grease filters
- TouchSelect
- 3 power levels and
- 1 intensive level
- Fan run-on 10 minutes
- Automatic reset from intensive to normal level after 6 minutes.
- Home Connect: Operate, check and adjust your hood via smartphone or tablet (only in countries where the Home Connect service is available)
- The Hob-based hood control automatically activates the extractor hood when cooking, thanks to the WiFi connection of the extractor hood and a suitable Hob.
- Hob-hood connection: The extractor hood automatically adjusts the fan speed as the hob continuously provides cooking data (with a suitable hob and connected Home Connect access)
- Fully automatic extractor hood
- Voice control possible via common voice assistants
- Performance profiles: Choose between standard, performance or quiet in the Home Connect app to increase the extraction power or reduce the fan noise.< /li>
- LED lighting with adjustable light temperature: Allows you to adjust the light temperature to your personal needs via the Home Connect app
- Saturation display, setting and reset function for grease filters and odor filters available via the Home Connect app .
- Overrun function: available via Home Connect app
- Interval function: available via Home Connect app
- The Home Connect functionality can be achieved by integrating numerous applications from external cooperation partners ( Partnering) as desired
- Upgradable device (available with a connected Home Connect account): Always keep the device up to date with the latest software.
- The surfaces and materials are smooth and easy to clean.
- Inner frame, easy to clean
- Metal grease filter, Dishwasher safe
- According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values in exhaust air mode:
- Performance level 1: Fan performance: 223 m3/h; Noise value 35 dB(A) re1pW
- Performance level 2: Fan performance: 320 m3/h; Noise value 43 dB (A) re1pW
- Performance level 3: Fan performance: 432 m3/h; Noise value 51 dB (A) re1pW
- Intensive level 1: Fan performance: 915 m3/h; Noise value 68 dB (A) re1pW
- Energy efficiency class: A+ (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 35.5 kWh/year*
- Fan efficiency class: A*
- Lighting efficiency class: A*
- Grease filter efficiency class: C*
- According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values in recirculation mode with the Clean Air plus recirculation set for installation with a chimney:
- Performance level 1 : Fan performance: 212 m3/h; Noise value: 42 dB(A) re1pW
- Performance level 2: Fan performance: 315 m3/h; Noise value: 51 dB(A) re1pW
- Performance level 3: Fan performance: 433 m3/h; Noise value: 59 dB(A) re1pW
- Intensive level 1: Fan performance: 896 m3/h; Noise value: 76 dB (A) re1pW
- According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values in recirculation mode with the Clean Air plus recirculation set for chimney-free installation:
- Performance level 1: Fan performance: 215 m3/h; Noise value: 42 dB(A) re1pW
- Performance level 2: Fan performance: 315 m3/h; Noise value: 51 dB(A) re1pW
- Performance level 3: Fan performance: 438 m3/h; Noise value: 60 dB(A) re1pW
- Intensive level 1: Fan performance: 886 m3/h; Noise value: 78 dB (A) re1pW
- Consumption information:
- Total connected load: 200 W< /li>
- Voltage: 220 - 240 V
- Sustainability:
- Made in Germany: manufactured in a CO2-neutral production facility
- Environmentally friendly packaging li>
- The most efficient fan technology on the market
- Available odor filter as a regenerable long life filter with a service life of 10 years
- Hob-hood connection for the best results with minimal energy consumption
- Device dimensions for exhaust air (HxWxD): 855-1098 x 790 x 433 mm
- Device dimensions for circulating air (HxWxD) : 892-1185 x 790 x 433 mm
- Dimensions of recirculating air installation, chimneyless (HxWxD): 471 mm x 790 mm x 433 mm
- Simple and weight-reduced installation thanks to the new easy installation System
- Exhaust air connection Ø 150 mm
- Length of connection cable: 1.3 m with plug
- Delivery with backflow flap
- Product series: Series 6
- Color of device: Black
- Basic color of the product b>: Not applicable
- Colour of housing: Black
- Material of chimney: Black
- Specify housing material: Glass, painted
- Design: Wall mounting
- Control: Electronic
- Design: Built-in
- Type of installation: Wall mounting
- Controls: LED , TouchControl
- Decorable: Not applicable
- Location of fan: Motor in housing
- Type of air duct: Convertible
- Connection load: 200 W
- Fuse: 10
- Voltage: 220-240 V
- Minimum voltage: 220 V
- Maximum voltage: 240 V
- Frequency: 50; 60
- Minimum frequency: 50
- Maximum frequency: 60
- Length of connection cable: 130.0 cm
- Plug type: Schuko/Gardy.with earthing
- Device height: 45 cm
- Device width: 79 cm
- Device depth: 43.3 cm
- Height of packed device: 77 cm
- Width of packaged device: 73 cm
- Depth of packaged product: 123 cm
- Net weight: 24.1 kg
- Gross weight: 35.4 kg
- Air outlet: Yes
- Height of chimney exhaust air max.: 66.3 cm
- Height of chimney exhaust air min.: 42 cm
- Height of chimney circulating air max.: 75 cm
- Height of chimney circulating air min.: 45.7 cm
- Energy efficiency class (2010/30/EU): A+
- Avg. Annual energy consumption: 35.5 kWh/year
- Fluid dynamics efficiency (2010/30/EU): 39.7
- Lighting efficiency (2010/30/EC): 58.6 lux/Watt
- Grease filter efficiency (2010/30/EU): 81.4%
- Max. Air volume: 432 m³/h
- Minimum air flow: 223 m³/h
- Air flow increased (2010/30/EU)< /b>: 915.0 m³/h
- Volume at max. speed (2010/30/EC): 51 dB
- Volume at min . Speed (2010/30/EC): 35 dB
- Sound power dB: 51 dB(A) re 1 pW
- Noise level with quick cooking position (booster): 68 dB(A) re 1 pW
- Energy-intelligent device, can optimize consumption behavior (2017/1369/EU): No
- Wireless communication possible: Yes, built into the device
- Network broadband technology: Not applicable
- SIM card slot available: No
- Type of interface for control: LAN
- Possibility for remote upgrade : Yes
- Ability to remotely update for maintenance: Yes
- Ability to voice control: Yes, with optional Accessories
- Manual controls: TouchControl
- Remote Control: No
- Total fan power< /b>: 190W
- Max. Fan performance - exhaust mode: 432 m³/h
- Fan performance at intensive level - exhaust mode: 915 m³/h
- Max. Fan performance - recirculation mode: 438 m³/h
- Fan performance at intensive level - recirculation mode: 886 m³/h
- Lighting efficiency ( 2010/30/EC): Gradual
- Total light intensity: 422 lux
- Grease filter material: washable stainless steel< /li>
- Diameter of exhaust air connection: 15 cm
- Backflow flap: Yes
- Odour filter : No
- Number of speed settings: 3 fan levels and 1 intensive level
- COMBINED_NOMENCLATURE_CODE: 84146000
Energy efficiency class: | A+ |
Color: | Black#1 |
Product type: | extractor hood |
Installation type: | Wall mounting |
Device width: | 80cm |
Controls: | LED;TouchControlLEDTouchControl |
Shipping weight: | 35,00 kg |
Item weight: | 24,00 kg |
Dimensions ( Length × Width × Height ): | 43,30 × 79,00 × 45,00 cm |
