Constructa cd30976, Flat screen hood, 90 cm, Silver metallic

  • SKU: CD30976
  • GTIN: 4242004251408
The Constructa flat screen hood with 4-stage fan power, effzientem BLDC motor and led lighting economical in energy efficiency class A.
  • 4-stage fan power: Always fresh air - adjustable in 4 stages with short-stroke buttons.
  • BLDC motor: Efficient, quiet and durable motor - economical in operation thanks to BLDC technology.
  • Durable metal grease filter: Quick and easy cleaning possible, dishwasher safe.
  • Made in Germany: Quality made in Germany.
  • Energy efficiency class a: Economical in consumption.
Constructa

Constructa cd30976, Flat screen hood, 90 cm, Silver metallic

A A+++ D
Product datasheet (opens in new tab)
from
353,00 €

Only 345,94 € by payment in advance
less 2% discount

incl. 19% VAT , Free shipping

  • Delivery time: 8 - 10 Workdays (DE - int. shipments may differ)
Unit od ac

Sicher bezahlen

Nothing found?

You could not find your desired device yet or you need a device of the manufacturers shown above? Then please tell us the desired item numbers and we will send you a non-binding offer.

Submit device request now

Description

Suitable accessories

Design
  • 90 cm
  • For exhaust or recirculation operation

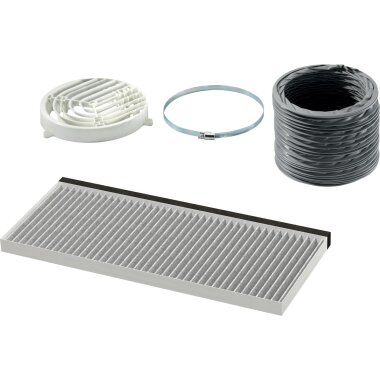

  • For recirculation operation, a standard recirculation set (optional accessory) is required
DesignComfort
  • High, finely adjustable fan power through electronic control
  • Short-stroke buttons (3 power levels and
  • 1 intensive level) with LED display
  • Electronic control on the side
  • Intensive stages with automatic reset
  • automatic fan run-on
equipment
  • Uniform, bright illumination with 3 x 1.5 w LED module
  • Color temperature: 3500 K
  • Illuminance: 355 lux
  • Cassette with aluminum frame
  • Durable metal grease filter, dishwasher safe
Operating mode and power
  • Fan capacity for exhaust air operation according to en 61591:
  • max. normal stage266 m³/h, intensive stage 412 m³/h
  • Noise values according to en 60704-2-13 for exhaust air operation:
  • Max. Normal level:63dB(a) re 1 pw
  • Intensive stage:70 dB(a) re 1 pw
  • Noise min./max. normal stage: 50/63 dB
  • 1 single-flow horizontal. Energy-saving operation due to efficient BLDC technology
Planning and installation information
  • Can be installed in 60 or 90 cm wide wall cabinet
  • Unit dimensions (HxWxD): 203 x 898 x 290 mm
  • Installation dimensions (HxWxD): 162 x 526 x 290 mm
  • exhaust air connection ø 150 mm (ø 120 mm enclosed)
  • Length of connection cable: 1.75 m with plug
Environment and safety
  • Energy efficiency class: a (on an energy efficiency class scale from a+++ to D)
  • Average energy consumption: 22.2 kwh/year*
  • Fan efficiency class: B*
  • Lighting efficiency class: a*
  • Grease filter efficiency class: C*
  • Total connected load: 76 w
Energy efficiency class: A
Color: Silver metallic
Product type: extractor hood
Installation type: Built in
Device width: 90cm
Controls: LEDShort-stroke keysShort-stroke keys; LEDTaste
Shipping weight: 12,00 kg
Item weight: 10,00 kg
Dimensions ( Length × Width × Height ): 29,00 × 89,80 × 20,30 cm

Technical data

  • Color appliance: Silver metallic
  • Basic product color: Not applicable
  • Housing color: Silver metallic
  • Specify housing material: Galvanized
  • Type of construction: flat screen hood
  • Control: electronic
  • Design: Built-in
  • type of installationbuilt-in
  • Operating elements: Short travel keys, LED
  • Decorative: Not applicable
  • Fan position: Motor in housing
  • type of air duct: Convertible
  • connected load: 76 w
  • fuse protection: 10
  • Voltage: 220-240 V
  • Frequency: 50; 60 TPU00040
  • Length connection cable175 cm
  • Plug type: Schuko/Gardy.w.grounding
  • Width of the device89,8 cm
  • Device depth29 cm
  • Packed unit height31 cm
  • Width of packed unit94 cm
  • Depth packed product36 cm
  • Minimum niche width52,6 cm
  • Maximum niche width52,6 cm
  • Niche depth29 cm
  • Net weight: 10,5 kg
  • Gross weight: 12,5 kg
  • Height chimney exhaust max.: 20,3 cm
  • Height chimney exhaust air min.20,3 cm
  • Height chimney recirculation max.20,3 cm
  • Height chimney recirculation min.20,3 cm
  • Average annual energy consumption: 22.2 kwh/year
  • Liquid dynamic efficiency (2010/30/EU): 23.7
  • Lighting efficiency (2010/30/EC)65.7 lux/watt
  • Grease filter efficiency (2010/30/EU): 81.8 %
  • Max. Air volume: 266 m³/h
  • Minimum air flow: 164 m³/h
  • Air flow amplified (2010/30/EU): 412 m³/h
  • Loudness at max. speed (2010/30/EC)63 dB
  • Volume at min. speed (2010/30/EC)50 dB
  • Volume amplified (2010/30/EC)70 dB
  • Energy consumption in standby mode (2010/30/EC): 0.20 w
  • Sound power dB: 63 dB(a) re 1 pw
  • Noise level with fast cooking position (booster): 70 dB(a) re 1 pw
  • Energy smart appliance, can optimize consumption behavior (2017/1369/EU): No
  • Wireless communication possible: No
  • Network broadband technology: Not applicable
  • SIM card slot available: No
  • type of control interfaceno
  • Remote upgrade possibilityno
  • Possibility of remote update for maintenance: No
  • Possibility of voice controlno
  • Manual controls: Short-stroke keys
  • Remote Controlno
  • Total fan power: 70 w
  • Max. Fan power - exhaust mode: 266 m³/h
  • Max. fan power at intensive stage - exhaust air mode412 m³/h
  • Max. Fan capacity - recirculation mode: 263 m³/h
  • Max. blower capacity at intensive stage - recirculation mode: 353 m³/h
  • Lighting efficiency (2010/30/EC): on/off
  • Total light intensity: 355 lux
  • Grease filter material: aluminum washable
  • Diameter exhaust port: 12 cm
  • type of grease filtercassette
  • Backflow flapno
  • Odor filterno
  • type of lights used: LED
  • COMBINED_NOMenCLaTURE_CODE: 84146000
