neff d65xam2s0, n 70, Integrated design hood, 60 cm, clear glass black printed
construction
- 60 cm
- Can be installed in 60 cm wide wall unit
- optionally exhaust air or recirculated air operation
- For operation in recirculation mode, various recirculation sets are available and necessary as optional Accessories.
- Flush installation for seamless integration into wall cabinets.
- Space-saving, compact design for additional storage next to the hood and for max. 10 kg per side.
- Glass panel with touch controls for easy operation and improved steam absorption.
- High, finely adjustable air output thanks to electronic control via TouchControl with LED display
- 3 power levels and
- 1 intensive stage
- Intensive stage with automatic reset
- Fan and lighting are automatically switched on and off by opening and closing the glass pane.
- The lighting can also be switched on and off when the glass pane is closed by a quick hand touch in the control area.
- 2 x 2 w LED
- Softlight
- Color temperature: 3500 K
- illuminance: 451 lux
- energy efficient capacitor motor
- Metal grease filter, Dishwasher safe
- Cassette with stainless steel frame
- The surfaces and materials are smooth and easy to clean.
- Exhaust air capacity according to en 61591:
- max. normal operation460m³/h
- Intensive stage749 m³/h
- Fan capacity for exhaust air operation according to en 61591:
- max. normal stage460 m³/h, intensive stage 749 m³/h
- Noise values according to en 60704-2-13 for exhaust air operation:
- Max. normal stage:63db(A) re 1 pw
- Intensive stage:73 db(A) re 1 pw
- Noise min./max. normal stage: 50/63 db

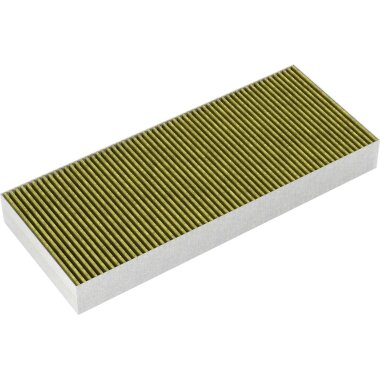

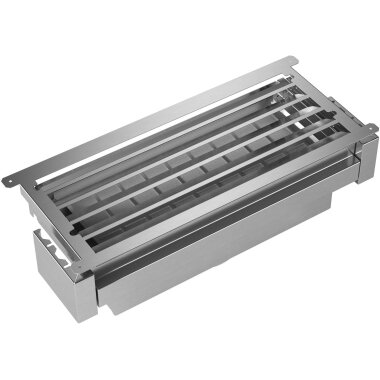

- when using the separately available Clean Air Plus recirculation set (optional accessory), your appliance will achieve the following values in recirculation mode:
- Recirculation stage: Max. normal operation:451m³/h
- Intensive stage:652m³/h
- Noise level recirculation: Max. normal mode:67db(A) re 1 pw
- Intensive stage:74 db(A) re 1 pw
- Suitable for installation in floor-less wall cabinets.
- Wall end strips for installation in wall cabinets with a maximum depth of up to 360 mm are included with the unit.
- Mats to protect the storage space from scratches and dirt on the top sides are included.
- Chimney extensions are available as optional Accessories for installation in higher wall cabinets.
- The chimney extensions are compatible with the available recirculating air starter sets.
- Unit dimensions (HxwxD): 340 x 597 x 298 mm
- Installation dimensions (HxwxD): 340 x 560 x 300 mm
- Exhaust air connection ø 150 mm (ø 120 mm enclosed)
- with backflow flap
- Length of connection cable: 1.3 m with plug
- Observe dimensions and installation instructions for this unit according to technical drawing
- Energy efficiency class: b (on an energy efficiency class scale from a+++ to D)
- Average energy consumption: 62.7 kwh/year*
- Fan efficiency class: b*
- lighting efficiency class: A*
- Grease filter efficiency class: b*
- Total connected load: 256 w
Energy efficiency class: | B |
Color: | Black#1 |
Product type: | extractor hood |
Installation type: | Built in |
Device width: | 60cm |
Controls: | LED; touch controlLEDTouchControl |
collection: |
![]() |
Shipping weight: | 17,00 kg |
Item weight: | 11,00 kg |
Dimensions ( Length × Width × Height ): | 29,80 × 59,70 × 6,00 cm |
Carl-Wery-Straße 34
Bayern
München, Deutschland, 81739
www.bsh-group.com
https://www.bsh-group.com
- Product series: n 70
- Color applianceblack
- Basic color of the product: not applicable
- Housing color: Black
- Specify housing material: lacquered
- type of construction: Fan module/intermediate/under-mounted hood
- Control: Electronic
- type of construction: Built-in
- Type of installation: Built-in
- controls: led, TouchControl
- Decorable: not applicable
- Fan position: motor in housing
- Type of airflow: Convertible
- Connected load: 256 w
- Voltage: 220-240 V
- Frequency50 TPU00040
- Length connection cable: 130 cm
- Plug type: Schuko/Gardy.w.grounding
- Device width: 59,7 cm
- Device depth29,8 cm
- Packed unit height58 cm
- width of packed unit65 cm
- Depth packed product67 cm
- minimum niche width56 cm
- maximum niche width56 cm
- niche depth30 cm
- net weight11,8 kg
- gross weight: 17,4 kg
- Height chimney exhaust air max.34 cm
- Height chimney exhaust air min.34 cm
- Average annual energy consumption: 62.7 kwh/year
- Liquid dynamic efficiency (2010/30/EU): 27.6
- lighting efficiency (2010/30/EC)71.6 lux/watt
- Grease filter efficiency (2010/30/EU): 90.2 %
- Max. Air volume: 460 m³/h
- Minimum air flow: 265 m³/h
- Air flow amplified (2010/30/EU): 749 m³/h
- Loudness at max. speed (2010/30/EC)63 db
- Loudness at min. speed (2010/30/EC)50 db
- Volume amplified (2010/30/EC)73 db
- Energy consumption in standby mode (2010/30/EC): 0.29 w
- Sound power db: 63 db(A) re 1 pw
- Noise level with fast cooking position (booster): 73 db(A) re 1 pw
- Energy intelligent appliance, can optimize consumption behavior (2017/1369/EU): no
- Wireless communication possible: no
- network broadband technology: not applicable
- SIM card slot available: no
- Type of interface for control: no
- Remote upgrade possibility: no
- Possibility of remote update for maintenance: no
- Possibility of voice controlno
- Manual controlstouchControl
- Remote Controlno
- Total fan power: 250 w
- Max. Fan capacity - exhaust air mode: 460 m³/h
- Max. fan power at intensive stage - exhaust air mode: 749 m³/h
- Max. Fan capacity - recirculation mode451 m³/h
- Max. fan power at intensive stage - recirculation mode: 652 m³/h
- lighting efficiency (2010/30/EC): On/Off
- Total light intensity: 451 lux
- Grease filter material: stainless steel washable
- Diameter exhaust port: 12 cm
- Type of grease filtercassette
- Backflow flapyes
- Odor filter: no
- COMbInED_nOMenCLATURE_CODE: 84146000
