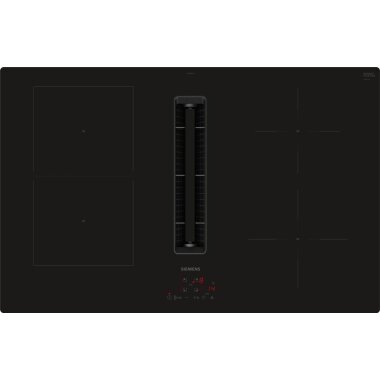

Siemens ED811BS16E, iQ300, hob with extractor hood (induction), 80 cm, frameless

SKU: ED811BS16E
GTIN: 4242003946268

Design hob with a fully integrated and flush extractor hood.

Combi zone: combine two cooking zones into one for cooking with large pans and pots.
touchControl: for the particularly convenient control of the hob with just one touch.
Easy to clean: minimal cleaning effort for the integrated extractor hood.
powerBoost: increase the power of individual induction zones by up to 50%.< /li>
Timer with switch-off function: switches off the active cooking zone after the timer has expired.

Siemens

Siemens ED811BS16E, iQ300, hob with extractor hood (induction), 80 cm, frameless

B A+++ ↑ D

Product datasheet

1.319,00 €

3.196,00 €**

(Save 59%, i.e. 1.877,00 €)

Only 1.292,62 € by payment in advance
less 2% discount

incl. 19% VAT , Free shipping

Delivery time: 8 - 10 Workdays (DE - int. shipments may differ)

Unit od ac

oder

Garantieverlängerung 5 Jahre (€ 60,00)

Nothing found?

Bosch accent line

Neff Collection

You could not find your desired device yet or you need a device of the manufacturers shown above? Then please tell us the desired item numbers and we will send you a non-binding offer.

Submit device request now

Suitable accessories

Siemens cookware set, HZ9SE030

Siemens cookware set, HZ9SE030

83,00 € *

Siemens ED811BS16E, iQ300, hob with extractor hood (induction), 80 cm, frameless

Siemens

80 cm: Space for 4 Pots or Pans

Flexibility of the cooking zones

Combi zone: When using larger cookware, two Cooking zones connected to one larger one.
Cooking zone at the front left: 190 mm, 210 mm, 2.2 kW (maximum power 3.7 kW)
Cooking zone at the back left: 190 mm, 210 mm, 2.2 kW (maximum power 3.7 kW)
Rear right cooking zone: 180 mm, 1.8 kW (maximum power 3.1 kW)
Front right cooking zone: 210 mm, 2.2 kW (maximum power 3.7 kW)

Ease of use

touchControl operation: control the power with the printed +/- touch buttons.
17 power levels: digits Turn on the heat precisely with 17 power levels (9 main levels and 8 intermediate levels).
Switch-off timer: switches off the cooking zone at the end of the set time (e.g. for boiled eggs).
Countdown timer: A signal sounds at the end of the set time (e.g. when cooking pasta).

Time saving and efficiency

powerBoost function for All induction cooking zones possible: With 50% more power, e.g. B. Bring water to the boil faster than at the highest power level.
quickStart: When switched on, the Hob automatically selects the cooking zone on which cookware was placed when it was switched off.
reStart: In If the Hob is switched off unintentionally, all settings will be retained if you switch it on again within 4 seconds.
Quick switch-off: Quick switch-off by touching the cooking zone control surface for a longer period of time.

Design

Frameless

Safety

2-stage residual heat display for each cooking zone: Shows which cooking zones are still hot or are warm.
Child lock: Prevents the Hob from being activated unintentionally.
Main switch: Switch off all cooking zones at once.
Automatic safety switch-off: The hob switches off for safety reasons automatically after a preset time without interaction.

Installation

Dimensions of the device (HxWxD mm): 223 x 802 x 522
Required niche size (HxWxD mm): 223 x 750 x (490 - 490)
Minimum worktop thickness: 16 mm
Total connected load: 7400 W
powerManagement function: If necessary, limit the maximum power (depending on the fuse protection of the electrical installation).

Accessories

cleanAir Plus odor filter, telescopic slide element for recirculating air included

Integrated downdraft ventilation system

Induction hob with fully integrated, powerful downdraft extractor module.
Suitable for configurations in exhaust or recirculation mode (incl. differentiated software modes). Installation Accessories for the unguided circulating air, including four cleanAir Plus odor filters and a telescopic sliding element, are included in the scope of delivery of the hob. Accessories for other installation options are available, details in the planning notes.
Aesthetically integrated, flush air inlet design with floating, heat-resistant glass ceramic element for free movement and placement of cookware.
Ventilation system with 3 electronically controlled fan levels and an intensive level (with automatic reset). Control via touchControl operation.
Automatic switching on of the ventilation system when a cooking zone is used.
Automatic delayed switch-off after cooking to eliminate residual odors after cooking (in a specific ultra-low-noise fan level , 12min (exhaust air), 30min (recirculating air), can be switched off manually)
Fully manual control possible via touchControl operation.
Fan technology with highly efficient and low-noise EcoSilence Drive motor. Flow-optimized air flow in the interior
Easy removal and cleaning of the grease filter and overflow protection unit.
Convenient one-hand removal of the filter unit.
Large, 12 -layered stainless steel grease filters for high grease filtration efficiency (94%).
All parts are easy to clean, Dishwasher-safe and heat-resistant.
Condensate and overflow protection container, approx. 200 ml capacity.< /li>
Safety overflow tank (Dishwasher safe) with an additional 700 ml capacity. Easily accessible and removable from below.
A total capacity of 900 ml (200 ml + 700 ml)
Waterproof ventilation system
Extractor performance:
Exhaust air performance (according to EN 61591): min. normal level 330 m3/h, max. normal level 500 m3/h, max. boost/intensive level 622 m3/h
Recirculating air performance (according to EN 61591): min. normal level 252 m3/h, max. normal level 441 m3/h, max. boost/intensive level 595 m3/h
Noise levels in exhaust air mode: min. normal level 61 dB re 1 pW, max. normal level 69 dB re 1 pW, max. boost/intensive level 74 dB re 1 pW
Noise values in recirculation mode: min. normal level 55 dB re 1 pW, max. normal level 66 dB re 1 pW, max. boost/intensive level Intensive level 72 dB re 1 pW
Grease filter efficiency: 94%
Average energy consumption: 61.8 kWh/year
Energy efficiency class: B (at one Scale of energy efficiency classes from A+++ to D)
Fan efficiency class: A
Average energy consumption: 57
Grease filter efficiency class: B
Noise min./max. Normal level: 61 dB & 69 dB
For recirculation air configuration: 2 x 2 batteries directly integrated odor filter cleanAir Plus.
Optimized odor reduction when cooking with complex odor molecule chains (e.g. fish smells).< /li>
Large filter surface with high odor reduction rate
Anti-pollen function: The filter retains an extremely high amount of pollen in the air and deactivates the allergens retained by the filter.
li>
Filter Service life of 360 hours during intensive cooking (cannot be regenerated)
Very low noise with optimized psychoacoustics
Easy accessibility and easy removal from above through the air inlet
CleanAir Plus replacement filter set HZ9VRCR1.
In recirculation mode, 2 x 2 directly integrated, powerful cleanAir Plus recirculation filters

Planning and installation instructions

Suitable for exhaust or recirculation installations in 4 different options (unducted, partially and fully ducted recirculation or exhaust). The hob's scope of delivery includes installation accessories for unguided recirculating air, including four cleanAir Plus odor filters and a telescopic slider. The included accessories enable quick and easy installation and can be planned for all worktop depths ≥60cm.
Necessary for partially and fully ducted recirculated air - always order as a device set!
The first one is in the device set Relevant bends already included: Worktop depth ≥ 60 cm - shortened extensions (90° "S" flat duct bend HZ9VDSB4, male) Worktop depth ≥ 70 cm - standard extensions (90° "L" flat duct bend HZ9VDSB2, male) We offer partially guided recirculation up to the base area a preferred piping as an accessory set HZ9VDKR2 (designed for a working height of up to 960 mm). A wide range of special accessories are available for individual, fully managed recirculation.
Necessary for exhaust air - always order as a device set!
The first relevant sheet is already included in the device set: worktop depth ≥ 60 cm - shortened Extensions (90° “S” flat duct bend HZ9VDSB4, male) Worktop depth ≥ 70 cm - Standard extensions (90° “L” flat duct bend HZ9VDSB2, male) Further accessories for air ducting must be ordered separately based on individual planning. We offer a wide range of accessories for this.
Various duct accessories are available to complete the fully controlled recirculation or for any other individual recirculation planning.
Planning information:
Planning is possible as wall and island planning
The product and accessories meet the provisions of the needle flame test (according to IEC 60695-11-5) and building material class B1 (according to DIN 4102-1).
Exception: The HZ9VDSS2 flex sleeve accessory meets the needle flame test (according to IEC 60695-11-5) and building material class B2 (according to DIN 4102-1).
The maximum immersion depth is 223 mm under glass for top-mounted devices and 227 mm for devices that are suitable for flush installation (depending on the model).
The device must remain freely accessible from below.
No intermediate floor is necessary under the device. The drawers must be removable. The back wall can be left alone - all that is required is a cutout for the air outlet (position and size can be found in the installation instructions).
An installation in unducted recirculated air requires a vertical opening of at least 25 mm behind the back wall the furniture. For optimal performance, 50mm is recommended.
The minimum worktop thickness is 16mm for top-mounted and flush-mounted units with the standard installation system. Installation in thinner worktops is also possible with a spare part: Material number 626792
The total device weight is 26 kg. The load-bearing capacity and stability, especially with thin worktops, must be ensured by suitable substructures. The weight of the device (including corresponding weights such as filled Pots) and the worktop manufacturer's specifications for structural integrity must be taken into account.
For all partial and unguided recirculation plans, an air return opening of ≥ 400 cm² is required Base area required. The opening can be realized via outlet grilles, slatted grilles or slightly shortened bases, depending on the range of the kitchen furniture manufacturer.
The air outlet on the back of the device can be combined directly with a flat duct element (NW 150).
When installing an air duct in exhaust mode and a chimney-connected fireplace, the power supply must be equipped with a suitable safety switch. This is not necessary for an installation with recirculating air.
In exhaust air mode, a backflow flap with a maximum opening pressure of 65 Pa should be installed.

Product series: iQ300
Design: Built-in
Control: Electronic
Controls: front
Location of controls: front
Main surface material: glass ceramic< /li>
Color of device: Black
Basic color of the product: Not applicable
Frame design b>: frameless
Voltage: 220-240/380-415 V
Maximum voltage: 415 V
Frequency: 50-60
Length of connection cable: 110.0 cm
Connector type: Without plug (connection by a qualified electrician)
Device width: 80.2 cm
Device height: 22.3 cm
Device depth: 52.2 cm
Height of packaged device: 43 cm
Depth of packaged product : 94 cm
Width of packed device: 66 cm
Maximum niche height: 49 cm
Niche height minimum: 49 cm
Niche width maximum: 75 cm
Niche width minimum : 75 cm
Niche depth: 22.3 cm
Net weight: 24.2 kg
Gross weight: 30.6 kg
Connected load: 7400 W
Energy consumption of the 2nd heating element per kg b>: 185.0 Wh/kg
Energy consumption of the 5th heating element per kg: 175.0 Wh/kg
Energy consumption of the 7th heating element per kg : 175.0 Wh/kg
Avg. Annual energy consumption: 61.8 kWh/year
Energy efficiency index (2010/30/EU): 57.0%
Air flow increased (2010 /30/EU): 622.0 m³/h
Max. Air volume: 500 m³/h
Minimum air flow: 330.0 m³/h
Liquid dynamic efficiency (2010/30/EU) : 28.1
Sound power dB: 69 dB(A) re 1 pW
Grease filter efficiency (2010/30/EU ): 94.0 %
Volume at max. speed (2010/30/EC): 69 dB
Volume at min . Speed (2010/30/EC): 61 dB
Energy-intelligent device, can optimize consumption behavior (2017/1369/EU): No

Wireless communication possible

Network broadband technology: Not applicable
SIM card slot available b>: No
Ability to remotely upgrade: No
Ability to remotely update for maintenance: No li>
Accessories supplied: 1 x telescopic slide element for circulating air, 1 x Clean Air Plus odor filter
Automatic program: No
Dimensions of the 2nd cooking zone: 38 cm
Dimensions of the 5th cooking zone: 18 cm
Dimensions of the 7. Cooking zone: 21 cm
Cover type: Without
Location of the cooking zone: front left
Operation indicator light: No
Location of the 2nd cooking zone: middle left
Location of the 3rd Cooking zone: rear left
Location of the 4th cooking zone: middle back
Location of the 5th cooking zone: rear right
Location of the 6th cooking zone: middle right
Location of the 7th cooking zone: front right
Location of the 8th cooking zone: front middle / central
Location of the 9th cooking zone: central
Number of speed settings: 3 fan levels and 1 intensive level
Main switch: Yes
Electronic clock: Yes
Total fan power: 170 W
Power of the 2nd cooking zone: 3.6 W
Power of the 5th cooking zone: 1.8 W
Power of the 7th cooking zone: 2.2 W
Residual heat display: Separate
Control: Stepless energy regulation
Safety devices: Child lock, power management function, safety timer, pot detection
Type of the 2nd cooking zone: Induction
Type of the 5th cooking zone: Induction
Type of 7. Cooking zone: Induction
Diameter of the mixing bowl: 622 m³/h
Height of the mixing bowl: 595.0 m³/h
Max. Fan performance - exhaust air mode: 500 m³/h
Max. Fan power - recirculation mode: 441 m³/h
Odour filter: No
Prevent boiling over with cooking sensor: No
Flexible induction technology supported : No
Hob with booster function: Yes
Temperature control for perfect frying results: No
Cord included: Yes
Wok burner supported: No
COMBINED_NOMENCLATURE_CODE: 85166050

Color:	Black#1
Product type:	Hob with integrated extractor
Device width:	80cm
Controls:	In front
Shipping weight:	30,00 kg
Item weight:	24,00 kg
Dimensions ( Length × Width × Height ):	52,20 × 80,20 × 22,30 cm

Product safety information

Manufacturer information:

BSH Hausgeräte GmbH
Carl-Wery-Straße 34
Bayern
München, Deutschland, 81739
www.bsh-group.com
https://www.bsh-group.com

There are no reviews yet.

Produktsteckbrief

PDF

Produktsteckbrief

Benutzeranleitung (installation instruction)

PDF

Benutzeranleitung (installation instruction)

Benutzeranleitung (installation instruction)

PDF

Benutzeranleitung (installation instruction)

Benutzeranleitung (instruction for use)

PDF

Benutzeranleitung (instruction for use)

EU-Energielabel

PDF

EU-Energielabel

EU-Datenblatt

PDF

Bosch accent line

Neff Collection

Villeroy & Boch
