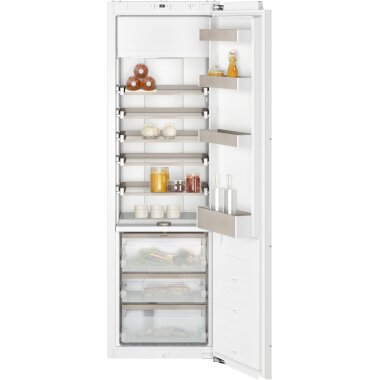

Gaggenau rt282306, 200 series, built-in refrigerator with freezer compartment, 177.5 x 56 cm
- 4 climate zones incl. 3 fresh food drawers near 0 °c
- Height adjustable shelves made of safety glass
- Door shelves with aluminum profiles
- Damped door retraction system allows smooth and controlled closing
- Usable capacity total 269 liters
- 4 climate zones incl. 3 fresh food drawers near 0 °c
- Height adjustable safety glass shelves
- Door shelves with aluminum profiles
- Damped door retraction system allows for smooth and controlled closing
- Total useful capacity 269 liters
- electronic temperature control with digital display.
- Sensor buttons.
- automatic defrosting with condensation water evaporation.
- Damped door retraction system from 20° door opening angle, integrated in the door hinge.
- alarm in case of open door or malfunction.
- Home network integration for digital services (Home Connect) wirelessly via WiFi.
- Use of the Home Connect function depends on the Home Connect services, which are not available in every country. For more information, visit home-connect.com.
- Fast cooling.
- Temperature adjustable from +3 °c to +8 °c.
- 5 height-adjustable safety glass shelves, 1 of which is extendable.
- 1 shelf.
- Wine and champagne rack for 4 bottles, fully foldable.
- 1 large door rack with aluminum profile for bottles. Bottle rack, sliding.
- 4 door racks with aluminum profile.
- Bright interior lighting with glare-free LeD lighting element, integrated on the side.
- Useful capacity 171 liters.
- 1 fully extendable fresh cooling drawer close to 0 °c, illuminated.
- Humidity manually adjustable.
- Ideal for fruit and vegetables.
- 2 fully extendable fresh refrigerated drawers near 0 °c, illuminated.
- Ideal for meat, fish and poultry.
- Useful capacity 83 liters.
- Storage temperature -18 °c and lower.
- 4-star freezer compartment.
- Freezing capacity 2.8 kg /24 hrs.
- Storage time in case of malfunction 9.5 hrs.
- Useful capacity 15 liters.
- energy efficiency class e on a scale of efficiency classes from a to G.
- energy consumption 184 kWh/year.
- Noise value 36 dB (a) re 1 pW.
- Flat hinge.
- Door hinge right, exchangeable.
- Door opening angle 115°, fixable to 90°.
- Max. permissible door front weight 22 kg.
- Total connected load 0.090 kW.
- connection cable 2.3 m with plug.
| Energy efficiency class: | A+++ E |
| Product type: | Refrigerator |
| Installation type: | Fully integrable |
| device width: | 60 cm |
| controls: | Warning signal door open Temperature display for cooling Superswitch cooling |
| Shipping weight: | 72,00 kg |
| Dimensions ( Length × Width × Height ): | 54,50 × 55,80 × 177,20 cm |
- Product series200 series
- Product categoryrefrigerator
- Product type1-door
- Type of construction: built-in
- Control: electronic
- type of installation: fully integrable
- Controls: superswitch cooling, temperature indicator for cooling, warning signal door open
- Color appliance: Not applicable
- Decorable: Not possible
- connected load: 90 W
- fuse protection: 10
- Voltage: 220-240 V
- Frequency50 TPU00040
- approval certificatesce
- Length of connection cable230 cm
- Type of plug: Schuko/Gardy.m.grounding
- Net capacity: 269 l
- Gross capacity refrigerator: 282 l
- Gross capacity freezer section: 16 l
- Unit height177,2 cm
- Appliance width55,8 cm
- Unit depth54,5 cm
- Product depth with door open (90°)114 cm
- Door hinge: Changeable to the right
- Height adjustable feetno
- Height packed unit184 cm
- Width packed unit61 cm
- Depth packed product64 cm
- Minimum niche height177,5 cm
- Maximum niche height177,5 cm
- Minimum niche width56 cm
- Maximum niche width56 cm
- Niche depth55 cm
- Net weight: 67,3 kg
- Gross weight: 72,7 kg
- type of defrosting technology (4-star compartment) (eU 2017/1369): Manual
- recommended temperature (4-star compartment) (eU 2017/1369): -18 °c
- Compartment volume (4-star compartment) (eU 2017/1369): 15.0 l
- Sum of the volumes of the freezer compartments (eU 2017/1369): 15 l
- Sum of the volumes of the cold storage compartments (eU 2017/1369): 254 l
- Total volume of the product (eU 2017/1369): 269 l
- type of defrosting technology (cold storage compartment) (eU 2017/1369): automatic
- Volume of the compartment (cold storage compartment) (eU 2017/1369): 83.0 l
- Average energy consumption in kilowatt hours per year (kWh/a) (eU 2017/1369): 184 kWh/a
- energy efficiency index (eU 2017/1369): 99.0
- Quick freeze" function (eU 2017/1369): Yes
- Freezing capacity (four-star compartment) (eU 2017/1369): 2.8 kg/24h
- Compartment volume (fresh food storage compartment) (eU 2017/1369): 171.0 l
- type of defrosting technology (fresh food storage compartment) (eU 2017/1369): automatic
- type of light source (eU 2019/1805): LeD
- Low noise refrigerator: No
- Maximum ambient temperature (eU 2017/1369): 38 °c
- Minimum ambient temperature (eU 2017/1369): 10 °c
- Airborne noise emissions (eU 2017/1369): 36 dB(a) re 1 pW
- Product excluded from the scope for "low-noise appliance" and "wine storage cabinet" (eU 2017/1369): No
- QR code (eU 2017/1369): HTTPS://ePReL.eC.eUROPa.eU/QR/260922
- Wine storage cabinet only: No
- Control function ?Winter switching" for combi unit (eU 2017/1369): No
- energy intelligent appliance, can optimize consumption behavior (2017/1369/eU): No
- Wireless communication possible: Yes, built into the unit
- Network broadband technology: Not applicable
- SIM card slot availableno
- Communication technology usedwiFi
- type of interface for control: LaN
- Remote upgrade possibilityno
- Possibility of remote update for maintenance: Yes
- Camera present in deviceno
- Warning signal in case of malfunctionno signal
- defrosting in freezer compartmentmanual
- Fast cooling functionyes
- Fast freezing functionno
- Freezer door open indicatoryes
- Internal fan refrigeratorno
- Furniture door mounting: Fixed mounted
- Bottle rackyes
- lockable doorno
- Material shelves: glass, plastic
- Temperature display refrigeratordigital
- Temperature display freezerwithout
- Included accessories: 3 x egg rack, 1 x wine and champagne rack, 1 x ice cube tray
- Adjustable temperatureyes
- Temperature adjustable freezerno
- Defrost water drying: No
