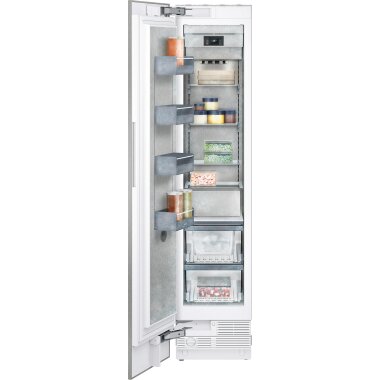

Gaggenau rf410304, 400 series, Vario built-in freezer, 212.5 x 45.1 cm
- stainless steel interior with solid anthracite aluminum elements
- Glare-free LeD spots with warm white light
- Opening aid for the door:
- 1. Push-to-open function for handleless furniture fronts
- 2. Pull-to-open function for easier opening of the door with handle
- The drawers of rc and rf are at the same height. In a side-by-side installation, the shelves and door shelves can be aligned on the same level
- Material and appearance of the interior as for rc
- - Door shelves made of solid anthracite-colored aluminum
- - glass shelves
- stainless steel interior with solid anthracite aluminum elements
- Glare-free LeD spots with warm white light
- Opening aid for the door:
- 1. Push-to-open function for handleless furniture fronts
- 2. Pull-to-open function for easier opening of the door with handle
- The drawers of rc and rf are at the same height. In a side-by-side installation, the shelves and door shelves can be aligned on the same level
- Material and appearance of the interior as for rc
- - Door shelves made of solid anthracite-colored aluminum
- - glass shelves
- Flat interior door with stainless steel, full-surface
- Almost invisible and flexible suspension system for shelves and door shelves
- TFT touch display
- Usable capacity total 240 liters
- Operation via TFT touch display.
- Plain text display.
- Dynamic cold distribution.
- automatic defrost with defrost water evaporation.
- Damped door retraction system.
- Sleep mode, Star-K certified.
- When sleep mode is active, door and drawer can be opened with only one handle.
- open door or malfunction alarm.
- Home network integration for digital services (Home Connect) wirelessly via WiFi.
- The use of the Home Connect function depends on the Home Connect services, which are not available in every country. For more information, visit home-connect.com.
- No-Frost technology with fast freezing at -30 °c.
- Temperature adjustable from -14 °c to -24 °c.
- 4-star freezer compartment.
- Freezing capacity 16 kg /24 hrs.
- Storage time in case of malfunction 6 hrs.
- 4 safety glass shelves, white glass, 4 of which are individually adjustable in height.
- 2 fully extendable drawers with transparent front.
- Brilliant LeD spots with glare-free and warm white light (3500 K).
- Flat inner door with fully flexible suspension system for door shelves.
- 4 height adjustable door shelves.
- energy efficiency class e on a scale of efficiency classes from a to G.
- energy consumption 246 kWh/year.
- Noise value 42 dB (a) re 1 pW.
- Flat hinge.
- Door hinge left, exchangeable.
- Door opening angle 115°, fixable to 90°.
- When installing the unit with a door opening angle of 90°, the drawers can only be opened to a limited extent.
- Max. permissible door front weight 59 kg.
- Total connected load 0.300 kW.
- connection cable 3.0 m, pluggable.
- Product series400 series
- Product category: Freezer
- Type of construction: built-in
- Control: electronic
- type of installation: not applicable
- Controls: super switch freezing, warning signal door open
- Color device: Not applicable
- Decorable: Not possible
- connected load: 300 W
- fuse protection: 10
- Voltage: 220-240 V
- Frequency50-60 TPU00040
- approval certificatesce, VDe
- Length of connection cable300 cm
- Type of plug: Schuko/Gardy.m.grounding
- Net capacity: 237 l
- Unit height: 212,5 cm
- Unit width45,1 cm
- Appliance depth60,8 cm
- Product depth with door open (90°)113,5 cm
- Door hinge: Left changeable
- Height adjustable feet: Yes - all
- Height packed unit226 cm
- Width packed unit55 cm
- Depth packed product75 cm
- Minimum niche height213,4 cm
- Maximum niche height213,4 cm
- Minimum niche width45,7 cm
- Maximum niche width45,7 cm
- Niche depth61 cm
- Net weight: 126,6 kg
- Gross weight: 140,4 kg
- type of defrosting technology (4-star compartment) (eU 2017/1369): automatic
- recommended temperature (4-star compartment) (eU 2017/1369): -18 °c
- Compartment volume (4-star compartment) (eU 2017/1369): 240.0 l
- Sum of the volumes of the freezer compartments (eU 2017/1369): 240 l
- Total volume of the product (eU 2017/1369): 240 l
- Average energy consumption in kilowatt hours per year (kWh/a) (eU 2017/1369): 246 kWh/a
- energy efficiency index (eU 2017/1369): 99.8
- Quick freeze" function (eU 2017/1369): Yes
- Freezing capacity (four-star compartment) (eU 2017/1369): 16.0 kg/24h
- type of light source (eU 2019/1805): LeD
- Low noise refrigerator: No
- Maximum ambient temperature (eU 2017/1369): 43 °c
- Minimum ambient temperature (eU 2017/1369): 10 °c
- Airborne noise emissions (eU 2017/1369): 42 dB(a) re 1 pW
- Product excluded from the scope for "low-noise appliance" and "wine storage cabinet" (eU 2017/1369): No
- QR code (eU 2017/1369): HTTPS://ePReL.eC.eUROPa.eU/QR/260942
- Wine storage cabinet only: No
- Control function ?Winter switching" for combi unit (eU 2017/1369): No
- energy intelligent appliance, can optimize consumption behavior (2017/1369/eU): No
- Wireless communication possible: Yes, built into the device
- SIM card slot available: No
- type of interface for control: LaN
- Remote upgrade possibility: No
- Possibility of remote update for maintenanceyes
- Fast freeze function: Yes
| Energy efficiency class: | A++ E |
| Product type: | Freezers |
| : | 50 cm |
| : | Superswitch freezing Warning signal door open |
| Shipping weight: | 140,00 kg |
| Dimensions ( Length × Width × Height ): | 60,80 × 45,10 × 212,50 cm |
