Bosch DIB97IM50, Series 4, island hood, 90 cm, stainless steel

  • SKU: DIB97IM50
  • GTIN: 4242005086269
The island island: the perfect solution for your kitchen island thanks to flexible ceiling mounting
  • Easy to clean interior: hidden screws and cables as well as rounded edges make cleaning easier.
  • DirectSelect- Operation: quickly adjust the extractor hood by touch.
  • High fan performance: excellent exhaust air performance of the extractor hood
Bosch accent line

Bosch DIB97IM50, Series 4, island hood, 90 cm, stainless steel

Product datasheet (opens in new tab)
Beratung anfordern
Sicher bezahlen

Nothing found?

You could not find your desired device yet or you need a device of the manufacturers shown above? Then please tell us the desired item numbers and we will send you a non-binding offer.

Submit device request now

Description

Suitable accessories

  • Energy efficiency class: B (on an energy efficiency class scale from A+++ to D)
  • Average energy consumption: 74.3 kWh/year*
  • Fan efficiency class: B* li>
  • Lighting efficiency class: A*
  • Grease filter efficiency class: B*
  • Noise min./max. Normal level: 45/57 dB
Construction typeDesignOperating mode and performanceOperating mode and operation PerformanceEnvironment and safetyComfortDimensionsTechnical information
  • Inselesse Stainless steel
  • 90 cm
  • 90 cm island, stainless steel
  • Choice of exhaust air or recirculation mode

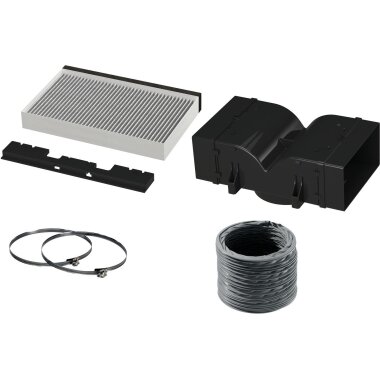

  • For recirculation mode there is a standard recirculation set or a clean Air Plus recirculation set (special accessory) required
  • For ceiling mounting above kitchen islands
  • DirectSelect operation
  • Electronic control
  • DirectSelect operation with LED Display
  • Extractor hoods for 3 power levels and
  • 1 intensive level
  • Electronic control via DirectSelect operation with LED display
  • DirectSelect operation ( 3 power levels and
  • 1 intensive level) with LED display
  • 3 power levels and
  • 1 intensive level
  • Intensive levels with automatic reset
  • Inner frame, easy to clean
  • Energy-efficient capacitor motor
  • Even, bright lighting with 4 x 1.5 W LED module
  • Illuminance: 409 lux
  • li>
  • Color temperature: 3500 K
  • Cassette with aluminum frame
  • Metal grease filter, dishwasher safe
  • Exhaust air output according to EN 61591:
  • max. Normal operation438m³/h
  • Intensive level754 m³/h
  • Exhaust air output according to EN 61591: max. 754 m³/h
  • Max. Fan performance 438 m³/h in exhaust mode according to EN 61591
  • Fan performance according to EN 61591 in exhaust mode:
  • Max. Normal level: 438m³/h
  • Intensive level: 754 m³/h
  • Device dimensions for recirculating air with CleanAir Plus recirculating air set (HxWxD): 812-1044 x 898 x 600 mm
  • Noise values ​​according to EN 60704-2-13 max. normal level for exhaust air operation: Noise, highest normal level: 57 dB dB(A) re 1 pW
  • Noise values ​​according to EN 60704-2-13 for exhaust air operation: li>
  • Max. Normal level: 57dB(A) right 1 pW
  • Intensive level: 68 dB(A) right 1 pW
  • Exhaust air connection Ø 150 mm (Ø 120 mm included)
  • Delivery with backflow flap
  • Max. Flow rate: 754 m3/h
  • Device dimensions for exhaust air (HxWxD): 744-924 x 898 x 600 mm
  • Device dimensions for circulating air (HxWxD): 744-1044 x 898 x 600 mm li>
  • Total connected load: 256 W
  • Length of connection cable: 1.3 m with plug
  • Voltage: 220 - 240 V
  • When using the separately available Clean Air Recirculation sets (special accessories), your device achieves the following values ​​in recirculation mode:
  •   Fan performance: Max. Normal level: 390m³/h
  • Intensive level: 527m³/h
  •   Noise values: Max . Normal level: 67dB(A) re 1 pW
  • Intensive level: 73 dB(A) re 1 pW
Energy efficiency class: B
Color: stainless steel
Product type: extractor hood
Installation type: Island
Device width: 90cm
Controls: Touch-SteuerungLEDTouchControlLED; touch control
collection: accent line
Shipping weight: 39,00 kg
Item weight: 29,00 kg
Dimensions ( Length × Width × Height ): 60,00 × 89,80 × 5,30 cm

Technical data

  • Product series: Series 4
  • Color of device: Stainless steel
  • Basic color of the product: Not applicable
  • Colour of casing: Stainless steel
  • Material of chimney: Stainless steel
  • Specify material of casing : Stainless steel
  • Design: island/ceiling fan
  • Control: Electronic
  • Design< /b>: Built-in
  • Type of installation: Island
  • Controls: LED, TouchControl
  • Decorable: Not applicable
  • Location of fan: Motor in the fireplace
  • Type of air flow: Convertible
  • Connected load: 256 W
  • Fuse: 10
  • Voltage : 220-240 V
  • Minimum voltage: 220 V
  • Maximum voltage: 240 V
  • Frequency: 60; 50
  • Minimum frequency: 50
  • Maximum frequency: 60
  • Length of connection cable: 130.0 cm
  • Plug type: Schuko/Gardy.with earthing
  • Device height: 5.3 cm li>
  • Device width: 89.8 cm
  • Device depth: 60 cm
  • Height of packed device< /b>: 84 cm
  • Width of packaged device: 61 cm
  • Depth of packaged product: 104 cm
  • Net weight: 29.2 kg
  • Gross weight: 39.7 kg
  • Air outlet: Yes
  • Height of chimney exhaust air max.: 87.1 cm
  • Height of chimney exhaust air min.: 69.1 cm
  • Height of chimney circulating air max.: 99.1 cm
  • Height of chimney circulating air min.: 69.1 cm< /li>
  • Avg. Annual energy consumption: 74.3 kWh/year
  • Fluid dynamics efficiency (2010/30/EU): 26.3
  • Lighting efficiency (2010/30/EC): 58.4 lux/Watt
  • Grease filter efficiency (2010/30/EU): 86.8%
  • Max. Air volume: 438 m³/h
  • Minimum air flow: 260 m³/h
  • Air flow increased (2010/30/EU)< /b>: 754.0 m³/h
  • Volume at max. speed (2010/30/EC): 57 dB
  • Volume at min . Speed ​​(2010/30/EC): 45 dB
  • Sound power dB: 57 dB(A) re 1 pW
  • Noise level with quick cooking position (booster): 68 dB(A) re 1 pW
  • Energy-intelligent device, can optimize consumption behavior (2017/1369/EU): No
  • Wireless communication possible: No
  • Network broadband technology: Not applicable
  • SIM card slot available: No
  • Type of interface for control: No
  • Remote upgrade option : No
  • Ability to remotely update for maintenance: No
  • Ability to voice control: No
  • Manual controls: TouchControl
  • Remote Control: No
  • Total fan power: 250 W li>
  • Max. Fan performance - exhaust mode: 438 m³/h
  • Fan performance at intensive level - exhaust mode: 754 m³/h
  • Max. Fan performance - recirculation mode: 390 m³/h
  • Fan performance at intensive level - recirculation mode: 527 m³/h
  • Lighting efficiency ( 2010/30/EC): On/Off
  • Total light intensity: 409 lux
  • Frease filter material: aluminum washable
  • Diameter of exhaust air connection: 15 cm
  • Backflow flap: Yes
  • Odour filter b>: No
  • Number of speed settings: 3 fan levels and 1 intensive level
  • Type of lights used: LED
  • COMBINED_NOMENCLATURE_CODE: 84146000
