Bosch DDW88MM66, Series 8, table fan, 80 cm, clear glass
Design
- 80 cm
- For mounting in a kitchen cupboard
- The perfect solution for installation in a kitchen island or peninsula solution.
- Choice of exhaust air or recirculation mode
- A Clean Air Plus recirculation set (special accessory) is required for recirculation mode.
- Retractable glass pane, illuminated
- The device in an unusual glass design is equipped with red illuminated edges. Can be set to any color via the HomeConnect app.
- Special Accessories are required for installation as a seamless combination.
- Comfort profile, which works together with the Hob as a unit thanks to seamless installation.
- Electronic control via DirectSelect operation
- The special functions are on the left control panel
- On the right control panel are the standard functions
- DirectSelect operation
- 3 power levels + 2 intensive levels
- Intensive level with automatic reset
- Intensive levels with automatic reset
- Intensive levels with automatic reset li>
- Fan run-on time 10 minutes
- PerfectAir air quality sensor
- Hob-based hood control (with matching Hob)
- Fully automatic extractor hood
- When Guided Air is activated, perfect vapor guidance is guaranteed, regardless of the pot height and positioning on the hob
- Decorative LED lighting: changes the colors
- High-quality filter cassettes with integrated metal grease filters, Dishwasher-safe
- Metal grease filters, Dishwasher-safe
- Saturation indicator for grease and odor filters
- In the filter cleaning position, the filter cassettes automatically move to easy cleaning Removal upwards
- The glass pane can be easily removed upwards for cleaning.
- Remote control and -Control for the networking of Household appliances and operation via smartphone or tablet (only in countries where Home Connect service is available)
- The Home Connect functionality can be achieved by integrating numerous applications from external cooperation partners (partnering). Expand as desired
- Voice control possible via common voice assistants
- Interval function: available via Home Connect
- Silence function: available via Home Connect ul>Operating mode and performance
- Exhaust air performance according to EN 61591:
- max. Normal operation501m³/h
- Intensive level775 m³/h
- Fan performance according to EN 61591 in exhaust air operation:
- Max. Normal level: 501m³/h
- Intensive level: 775 m³/h
- Noise levels according to EN 60704-2-13 for exhaust air operation:
- Max. Normal level: 62dB(A) re 1 pW
- Intensive level: 70 dB(A) re 1 pW
- Max. Fan performance 501 m³/h in exhaust air operation according to EN 61591
- Exhaust air performance according to EN 61591: max. 775 m³/h
- Noise values according to EN 60704-2-13 max. Normal level exhaust air operation: noise, highest normal level: 62 dB dB(A) re 1 pW
- Noise min./max. Normal level: 39/62 dB

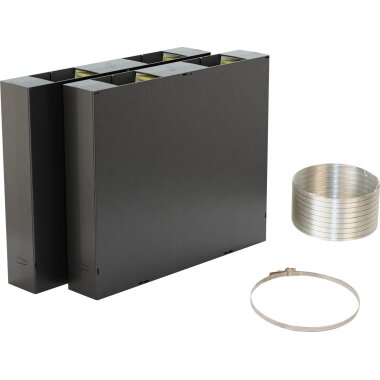

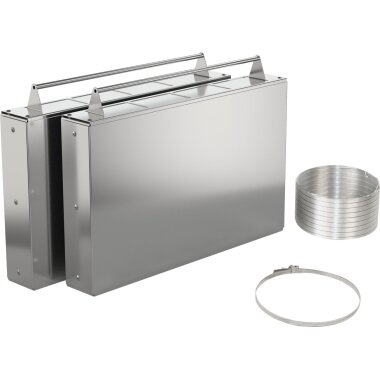

- When using the separately available Clean Air recirculation set (special accessory), your device achieves the following values in recirculation mode:
- Fan performance: Max. normal level: 416m³/h li>
- Intensive level: 525m³/h
- Noise values: Max. normal level: 65dB(A) re 1 pW
- Intensive level: 70 dB(A) re 1 pW
- Eco Silence Drive - the powerful and energy-saving motor
- Max. Flow rate: 775 m3/h

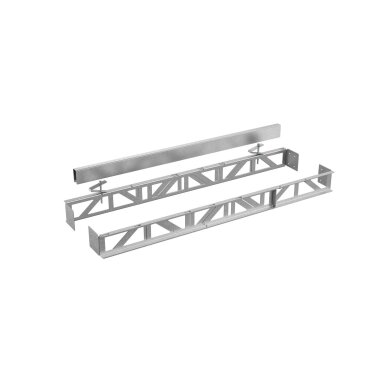

- Special Accessories are required for installation as a seamless combination.
- For installation suitable for a 90 cm base cabinet.
- Extension height 250 mm
- Device dimensions (HxWxD): 709 x 816 x 140 mm
- Installation dimensions (HxWxD): 703 x 781 x 123 mm
- Exhaust air socket ø 150 mm
- Length of connection cable: 1.3 m with plug

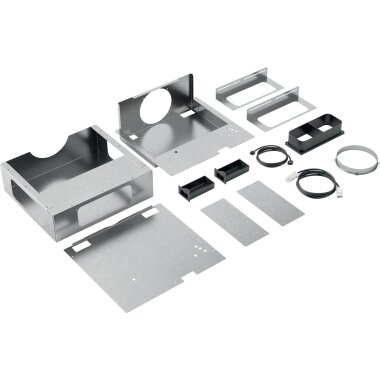

- Special Accessories are required for flexible installation of the motor
- Observe the dimensions and installation instructions for this device according to the technical drawing
- A combination with gas troughs is not possible.
- Energy efficiency class: A (on an energy efficiency class scale from A+++ to D)
- Average energy consumption: 36.9 kWh/year*
- Fan efficiency class: A*
- Lighting -Efficiency class: -*
- Grease filter efficiency class: B*
- Total connected load: 300 W
Energy efficiency class: | A |
Product type: | extractor hood |
Color: | Black#1 |
Controls: | TouchControl |
Installation type: | IntegrableBuilt in |
Device width: | 80cm |
collection: | |
Shipping weight: | 46,00 kg |
Item weight: | 35,00 kg |
Dimensions ( Length × Width ): | 14,00 × 81,60 cm |
- Product series: Series 8
- Color of device: Black
- Basic color of the product: Not applicable li>
- Colour of casing: Black
- Specify material of casing: Glass
- Construction type: Downdraft/Table fan
- Control: Electronic
- Design: Built-in
- Art of installation: Built-in
- Controls: TouchControl
- Decorative: Not applicable
- Location of fan: Motor in housing
- Type of air flow: Convertible
- Connection load: 300 W
- Fuse protection: 10
- Voltage: 220-240 V
- Minimum voltage b>: 220 V
- Maximum voltage: 240 V
- Frequency: 50; 60
- Minimum frequency: 50
- Maximum frequency: 60
- Length of connection cable: 130.0 cm
- Plug type: Schuko/Gardy.with earthing
- Device width: 81.6 cm li>
- Device depth: 14 cm
- Height of packed device: 61 cm
- Width of packed device< /b>: 114 cm
- Depth of packaged product: 87 cm
- Minimum niche width: 78.1 cm
- Maximum niche width: 78.1 cm
- Niche depth: 12.3 cm
- Net weight< /b>: 35.5 kg
- Gross weight: 46.7 kg
- Air outlet: Yes < li>Avg. Annual energy consumption: 36.9 kWh/year
- Fluid dynamic efficiency (2010/30/EU): 29.6
- Grease filter efficiency (2010/30/EU): 90.7%
- Max. Air volume: 501 m³/h
- Minimum air flow: 223 m³/h
- Air flow increased (2010/30/EU)< /b>: 775.0 m³/h
- Volume at max. speed (2010/30/EC): 62 dB
- Volume at min . Speed (2010/30/EC): 39 dB
- Sound power dB: 62 dB(A) re 1 pW
- Noise level with quick cooking position (booster): 70 dB(A) re 1 pW
- Energy-intelligent device, can optimize consumption behavior (2017/1369/EU): No
- Wireless communication possible: Yes, built into the device
- Network broadband technology: Not applicable
- SIM card slot available: No
- Communication technology used: WiFi
- Type of interface for control: LAN
- Ability to remotely upgrade: No
- Ability to remotely update for maintenance: Yes
- Voice control option: Yes, with optional accessories
- Manual controls: TouchControl
- Remote Control : No
- Total fan power: 300 W
- Max. Fan power - exhaust mode: 501 m³/h
- Fan power at intensive level - exhaust mode: 775 m³/h
- Max. Fan performance - recirculation mode: 416 m³/h
- Fan performance at intensive level - recirculation mode: 525 m³/h
- Material grease filter b>: Stainless steel, washable
- Diameter of exhaust air connection: 15 cm
- Backflow flap: No
- Odour filter: No
- Number of speed settings: 3 levels + 2 intensive
- COMBINED_NOMENCLATURE_CODE: 84146000< /li>
