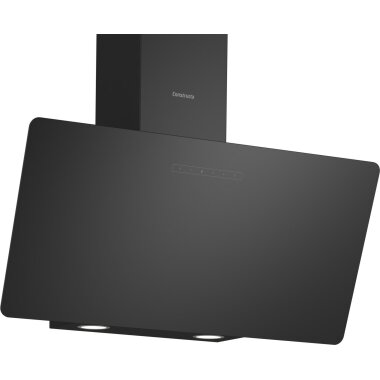

Constructa CD688866, wall dining, 80 cm, clear glass printed black

  • SKU: CD688866
  • GTIN: 4242004272854
The Constructa wall heater in black glass design, 80 cm wide, touch control, LED lighting is quiet with 4-stage fan power and can be operated in exhaust or recirculation mode.
  • 4- Level fan performance: Always fresh air thanks to the powerful motor with 4 fan levels.
  • Noise 60 dB: As quiet as a conversation with a fan performance of level 3 (60 dB).
  • Slanted design : Modern, black glass design for excellent headroom and overview when cooking.
  • LED lighting: Economical and long-lasting - the entire hob in view (with light efficiency class A).
  • Easy to clean: Large Opening angle for easy cleaning and simple filter replacement.
Constructa

Constructa CD688866, wall dining, 80 cm, clear glass printed black

A A+++ D
Product datasheet (opens in new tab)
from
393,00 €

Only 385,14 € by payment in advance
less 2% discount

incl. 19% VAT , Free shipping

  • Delivery time: 8 - 10 Workdays (DE - int. shipments may differ)
Unit od ac

Sicher bezahlen

Nothing found?

You could not find your desired device yet or you need a device of the manufacturers shown above? Then please tell us the desired item numbers and we will send you a non-binding offer.

Submit device request now

Description

Suitable accessories

Design:
  • Slanted dining design
  • Wall mounting
  • Glass pane: black printed
  • For exhaust air or recirculation mode< /li>

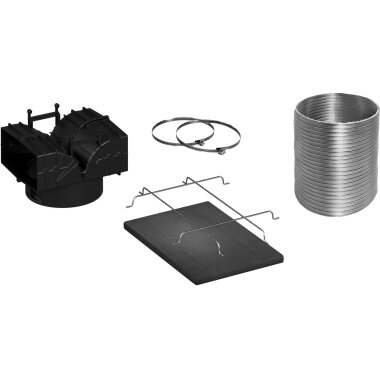

  • A standard recirculation set (special accessory) is required for recirculation operation
Most important features:
  • Capacitor motor
  • Workplace lighting with 2 x 3 W LED modules
  • Color temperature: 4000 K
  • Illuminance: 127 lux
  • 1 metal grease filter
Comfort functions :
  • Electronic control via touch control, backlit
  • 3 power levels and
  • 1 intensive level
  • Automatic reset from intensive to Normal level after 5 minutes.
  • Saturation display for grease and odor filters.
Comfort when cleaning:
  • Large opening angle of the glass plate with locking function for easy filter accessibility and easy cleaning.
  • The surfaces and materials are smooth and easy to clean.
  • Durable metal grease filter, dishwasher safe
Exhaust air performance:
  • According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values ​​in exhaust air mode:
  • Performance level 1: Fan performance: 220 m3/h ; Noise value 46 dB(A) re1pW
  • Performance level 2: Fan performance: 315 m3/h; Noise value 53 dB (A) re1pW
  • Performance level 3: Fan performance: 430 m3/h; Noise value 60 dB (A) re1pW
  • Intensive level 1: Fan performance: 550 m3/h; Noise value 65 dB (A) re1pW
  • Energy efficiency class: A (on an energy efficiency class scale from A+++ to D)
  • Average energy consumption: 43.8 kWh/year*
  • Fan efficiency class: A*
  • Lighting efficiency class: A*
  • Grease filter efficiency class: E*
Recirculating air performance:
  • According to EN 61591 and EN/IEC 60704-2-13, your device can achieve the following values ​​in recirculation mode with the standard recirculation set (available as an optional accessory):
  • Performance level 1: fan performance 215 m3/ H; Noise value 51 dB(A) re1pW
  • Performance level 2: Fan performance 300 m3/h; Noise value 61 dB(A) re1pW
  • Performance level 3: Fan performance 445 m3/h ; Noise value 69 dB(A) re1pW
  • Intensive level 1: fan performance 550 m3/h; Noise value 72 dB (A) re1pW
Technical data and sustainability:
  • Consumption information:
  • Total connected load: 223 W li>
  • Voltage: 220 - 240 V
Information for planning and installation:
  • Device dimensions, exhaust air (HxWxD): 690-900 x 790 x 325 mm
  • Device dimensions for circulating air (HxWxD): 720-975 x 790 x 325 mm
  • Exhaust air connection Ø 150 mm
  • Length of connection cable: 1.5 m with plug
  • li>
  • Delivery with backflow flap
Energy efficiency class: A
Color: Black#1
Product type: extractor hood
Installation type: Wall mounting
Device width: 80cm
Controls: LED; touch controlTouch-Steuerung
Shipping weight: 15,00 kg
Item weight: 11,00 kg
Dimensions ( Length × Width × Height ): 32,50 × 79,00 × 32,50 cm

Technical data

  • Color of device: Black
  • Basic color of the Product: Not applicable
  • Colour of housing: Black
  • Material of fireplace: Black
  • Specify the material of the housing: painted
  • Design: wall mounting
  • Control: electronic li>
  • Design: Built-in
  • Type of installation: Wall mounting
  • Controls: LED, TouchControl
  • Decorable: Not applicable
  • Location of fan: Motor in housing
  • Type of air duct: Convertible
  • Connection load: 223 W
  • Voltage: 220-240 V li>
  • Minimum voltage: 220 V
  • Maximum voltage: 240 V
  • Frequency: 50 TPU00040
  • Minimum frequency: 50
  • Maximum frequency: 50
  • Length of connection cable b>: 150.0 cm
  • Plug type: Schuko/Gardy.with earthing
  • Height of the product; without chimney: 37.5 cm
  • Device height: 37.5 cm
  • Device width: 79 cm< /li>
  • Device depth: 32.5 cm
  • Height of packaged device: 36 cm
  • Width Packaged device: 42.8 cm
  • Depth packaged product: 85.6 cm
  • Net weight: 11 .7 kg
  • Gross weight: 15.9 kg
  • Height of chimney exhaust air max.: 54 cm
  • < li>Height of chimney exhaust air min.: 30.5 cm
  • Height of chimney recirculation air max.: 60 cm
  • Height of chimney circulating air min.: 33 cm
  • Application of the EU Energy Consumption Directive: Yes
  • Avg. Annual energy consumption: 43.8 kWh/year
  • Fluid dynamics efficiency (2010/30/EU): 30.0
  • Lighting efficiency (2010/30/EC): 76.1 lux/Watt
  • Grease filter efficiency (2010/30/EU): 55.0%
  • Max. Air volume: 430 m³/h
  • Minimum air flow: 220 m³/h
  • Air flow increased (2010/30/EU)< /b>: 550.0 m³/h
  • Volume at max. speed (2010/30/EC): 60 dB
  • Volume at min . Speed ​​(2010/30/EC): 46 dB
  • Volume amplified (2010/30/EC): 65 dB
  • < b>Energy consumption in standby mode (2010/30/EC): 0.49 W
  • Sound power dB: 60 dB(A) re 1 pW
  • Noise level with quick cooking position (booster): 65 dB(A) re 1 pW
  • Energy-intelligent device, can optimize consumption behavior (2017/1369/EU) : No
  • Wireless communication possible: No
  • Network broadband technology: Not applicable
  • < li>SIM card slot available: No
  • Type of interface for control: No
  • Possibility of remote control Upgrade: No
  • Ability to remotely update for maintenance: No
  • Ability to voice control: No< /li>
  • Manual controls: TouchControl
  • Automatic controls: Without
  • Remote Control: No
  • Total fan power: 220 W
  • Max. Fan power - exhaust mode: 430 m³/h
  • Fan power at intensive level - exhaust mode: 550 m³/h
  • Max. Fan performance - recirculation mode: 445 m³/h
  • Fan performance at intensive level - recirculation mode: 550.0 m³/h
  • Lighting efficiency ( 2010/30/EC): On/Off
  • Total light intensity: 127 lux
  • Frease filter material: aluminum washable
  • Diameter of exhaust air connection: 15 cm
  • Type of grease filter: cassette
  • Backflow flap : Yes
  • Odour filter: No
  • Type of lights used: LED
  • COMBINED_NOMENCLATURE_CODE: 84146000
